Brand: Raptor Workholding Products

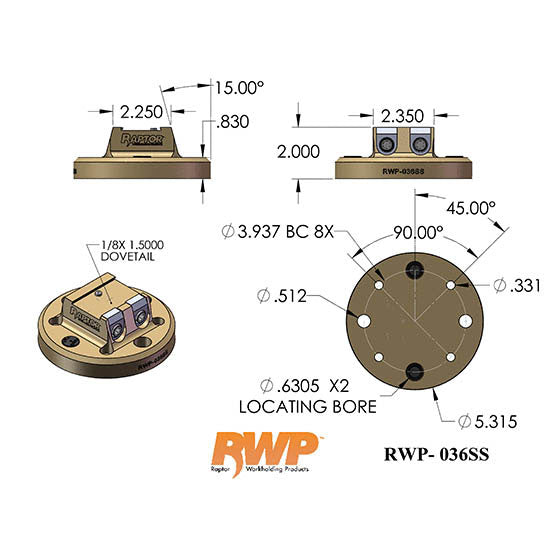

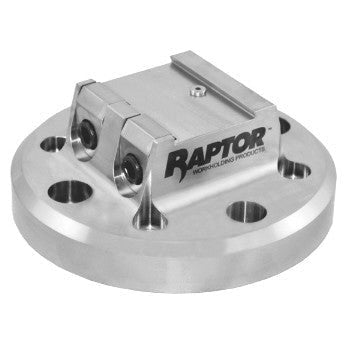

Raptor RWP-036SS Stainless Steel 1.5" Dovetail Fixture 3.937" Dia. BC
SKU: RPT-RWP-036SS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Raptor product orders*
Short Description
Raptor RWP-036SS Stainless Steel 1.5" Dovetail Fixture 3.937" Dia. BCFull Description
| Dovetail Width in. | 1.500 |
|---|---|
| Dovetail Height in. | 0.1250 |
| Fixture Material | Stainless Steel |
| Number of Clamps | 2 |
| Clamp Part Number | RWP-CL302SQ |
| Fixture Height in. | 2.000 |
This fixture has the KME 135mm pallet interface, for mounting directly with the following KME products:
5 Axis Tombstones:
KME-TS300-2.0 300mm
KME-TS400-4.0 400mm
KME-TS500-4.0 500mm
5 Axis Trunnions:
KME-TR100
KME-TR200
KME-TR300
It offers superior clamping strength while allowing access to five sides of the workpiece.
The RWP-036SS is manufactured from 17-4 Stainless Steel Heat Treated to H-1150.
The fixture clamps are made from 17-4 Stainless Steel.

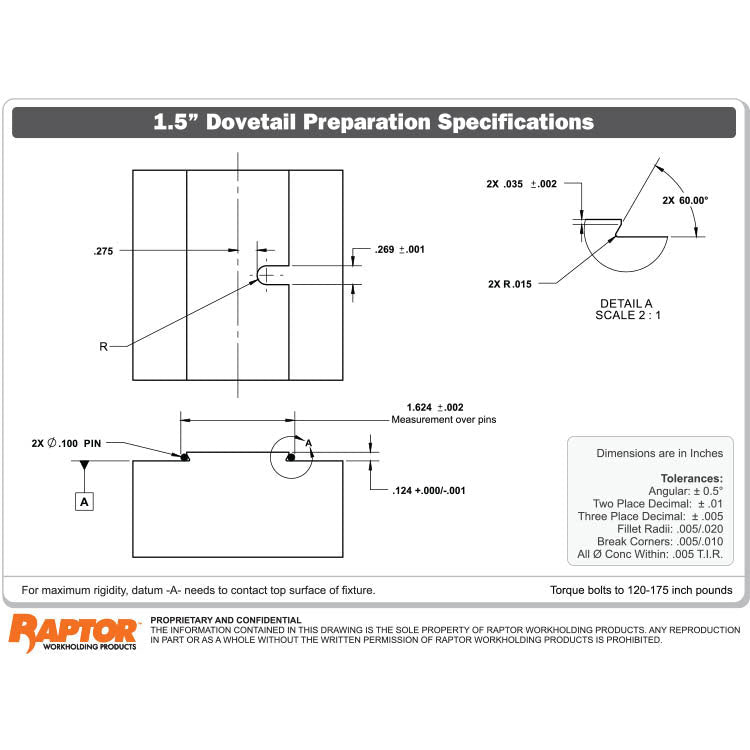

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
Patented Design. Patent US8,672,310 B2
HAVE AN EDM APPLICATION?
Use Raptor’s Stainless Steel Dovetail Fixtures
Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.
One-Step Setup
Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.
