Brand: Raptor Workholding Products
Raptor RWP-024-6XC Aluminum 0.75" Dovetail Carousel with 2.25" Dovetail Base
SKU: RPT-RWP-024-6XC
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-024-6XC Aluminum 0.75" Dovetail Carousel with 2.25" Dovetail BaseFull Description
Compatible With | RWP-024, RWP-024SS |
---|---|
Connects to | RWP-006, RWP-006SS |
Dovetail Width in. | 0.750 |
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 8 |
Max Workpiece Width in. | 4.00 |
Max Workpiece Length in. | 4.00 |
Max Workpiece Height in. | 4.00 |
Fixture Material | Aluminum |
Number of Clamps | 1 |
Clamp Part Number | RWP-CL302 |

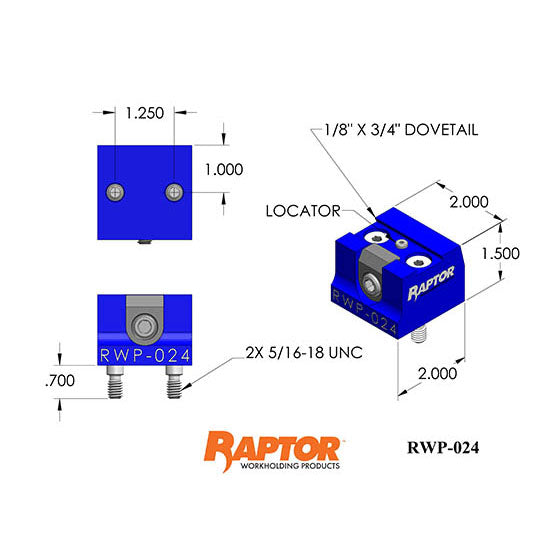

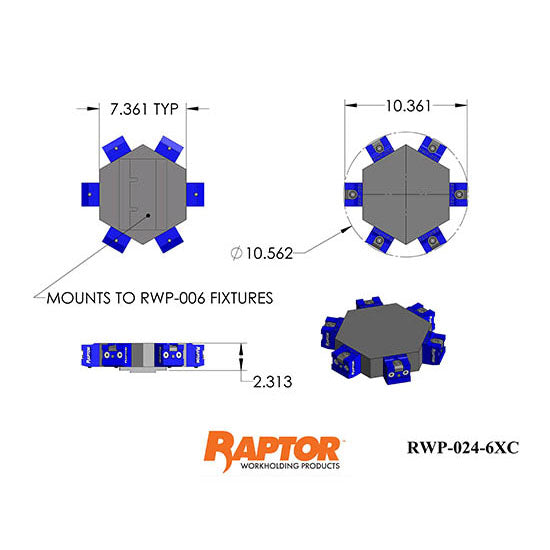

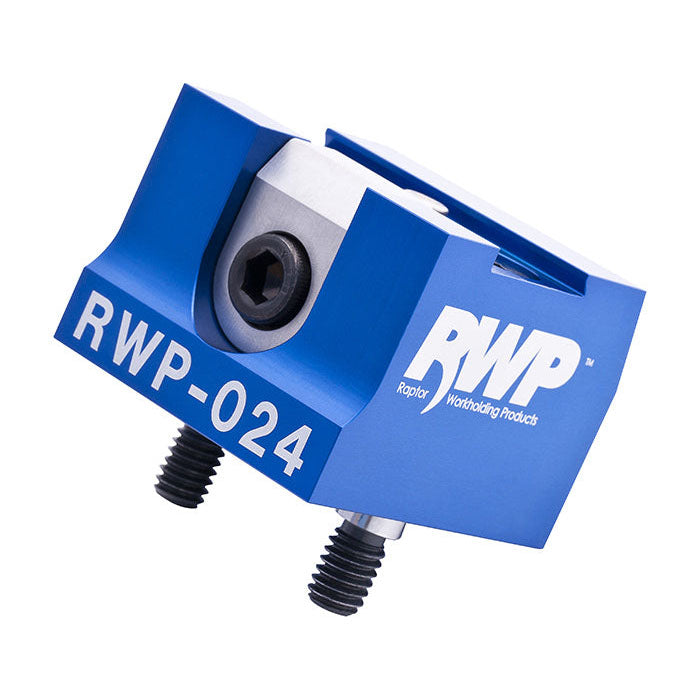

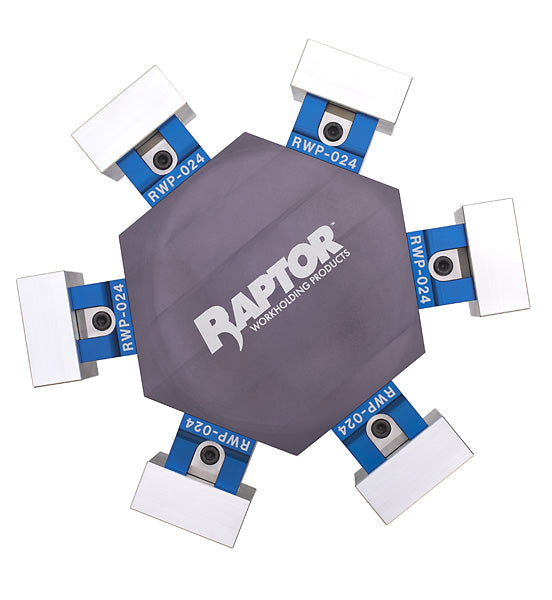

The RWP-024-6XC is a 0.75? dovetail carousel for milling applications. This product is designed for modular applications: utilizing 6 RWP-024 fixtures on a carousel base to machine multiple items in 1 operation. This carousel base mounts to either RWP-006 or RWP-006SS, as shown under additional images, are sold separately.
The components of the RWP-024-6XC (each RWP-024 and carousel base) are manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II. Custom materials can be special-ordered.
The fixture clamps are made from 17-4 Stainless Steel.

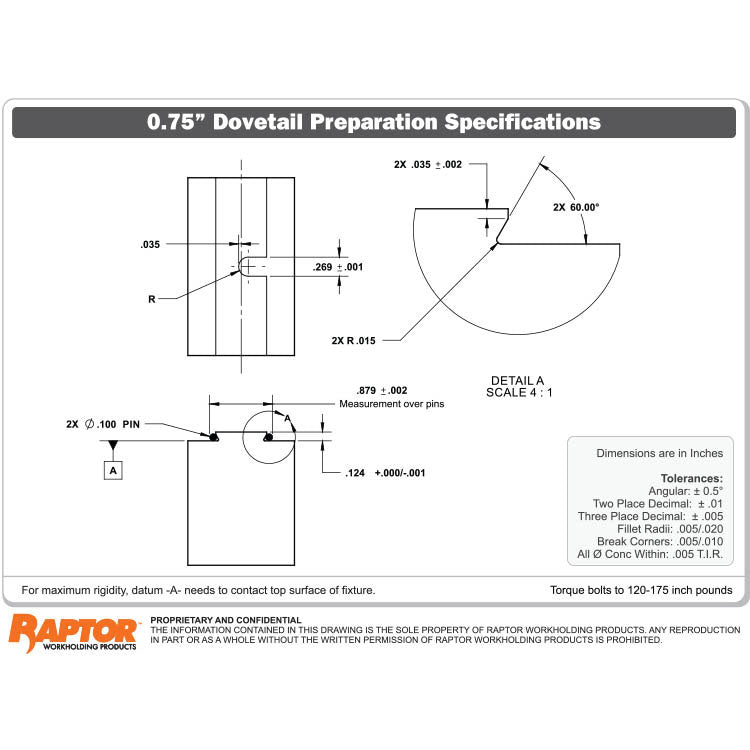

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical workpiece size dimensions (L x W x H): From: 2.0? x 2.0? x 2.0? To: 4.0? x 4.0?” x 4.0?
Patented Design. Patent US8,672,310 B2
