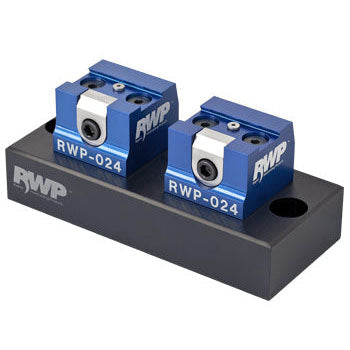

Raptor RWP-024-2XR Aluminum 0.75" Dovetail 2 In-Line Bridge System

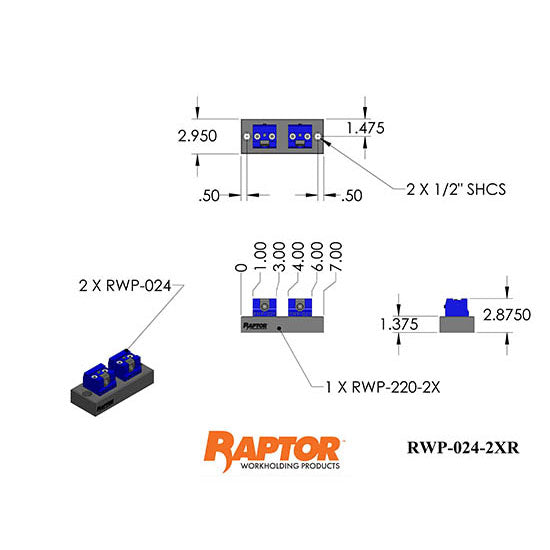

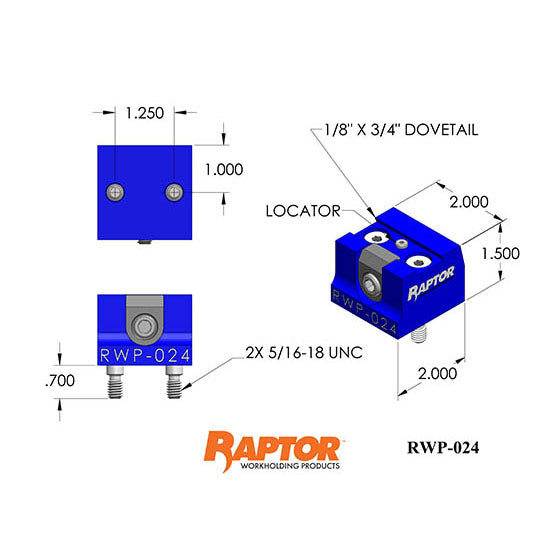

The RWP-024-2XR is a 0.75? dovetail bridge system for milling applications. This product is designed for modular applications: utilizing two RWP-024 fixtures in-line to hold longer parts.

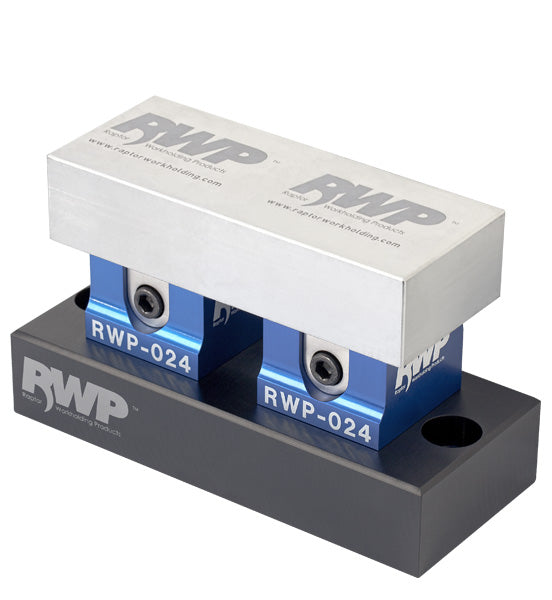

The versatility of this fixture allows you to either hold two workpieces weighing 8 pounds and size (L x W x H)  2.0? x 2.0? x 2.0?  or 1 long workpiece weighing up to 16 pounds and size (L x W x H) 8.5? x 4.0? x 4.0?.

The components of the RWP-024-3XR (each RWP-024 and base unit) are manufactured from Aluminum 7075-T6511 and Anodized Class 2 Type II.

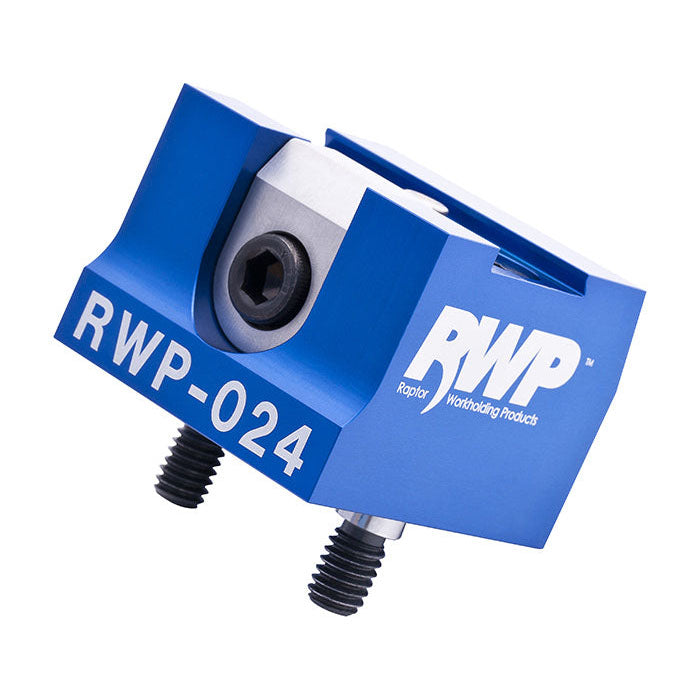

The fixture clamps are made from 17-4 Stainless Steel.

The bridge system is sold complete as shown. *Base unit can be purchased separately if you already own the RWP-024. Please call for details and availability.

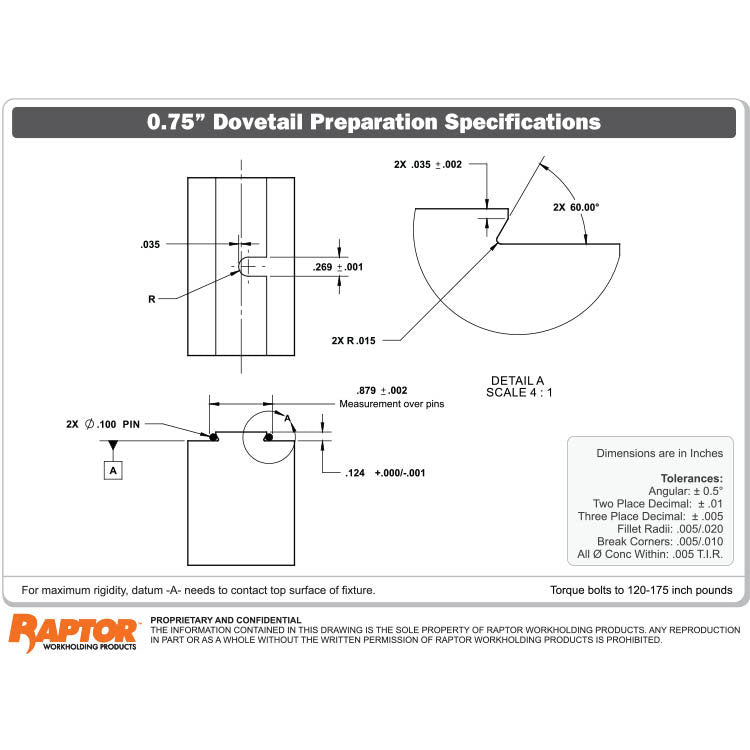

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

Patented Design. Patent US8,672,310 B2
