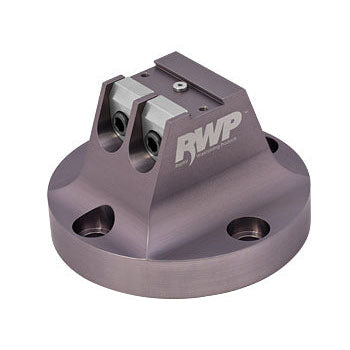

Raptor RWP-023 Aluminum 0.75" Dovetail FixtureBase: 4 holes & 4" dia. bolt circle

SKU: RPT-RWP-023
MPN: RWP-023

  • $1,016.28
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-023 Aluminum 0.75" Dovetail FixtureBase: 4 holes & 4" dia. bolt circle

Full Description

Dovetail Width in.

0.750

Dovetail Height in.

0.1250

Max Workpiece Weight lb.

18

Max Workpiece Width in.

5.75

Max Workpiece Length in.

5.75

Max Workpiece Height in.

5.75

Fixture Material

Aluminum

Number of Clamps

2

Clamp Part Number

RWP-CL302SQ

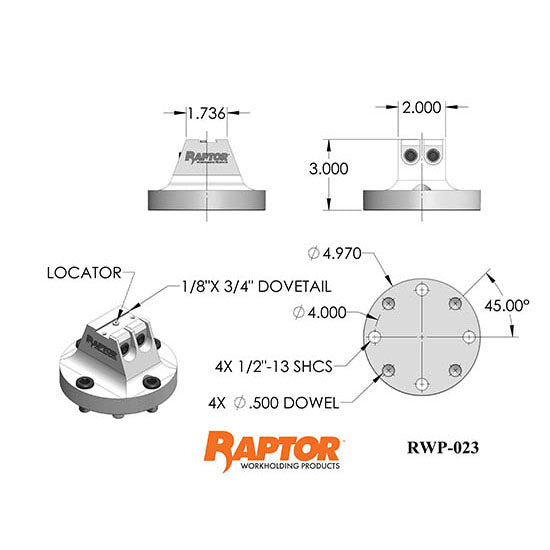

Fixture Height in.

3.000

Made for Tombstones with a 2.0? X 2.0? Hole Pattern or 4.0 Bolt Circle – without a boss or plug. The RWP-023 is a 0.750? dovetail fixture for milling applications. It offers superior clamping strength while allowing access to five sides of the workpiece.

The standard RWP-023 is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II. Custom materials can be special-ordered.

The fixture clamps are made from 17-4 Stainless Steel.

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 2.00? x 1.75? x 0.50? To: 5.75? x 5.75? x 5.75?

Patented Design. Patent US8,672,310 B2

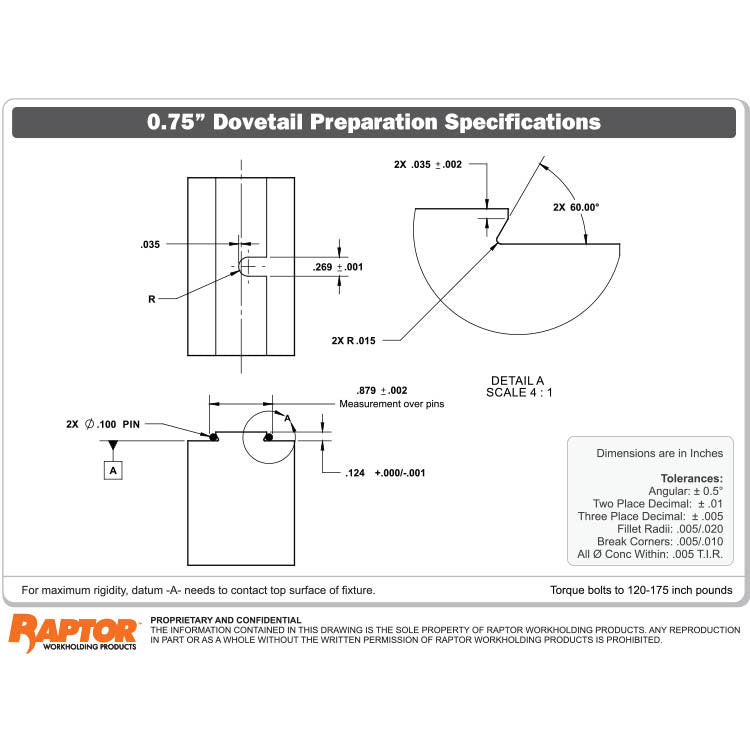

0.75 Dovetail Preparation Specifications
