Brand: Raptor Workholding Products

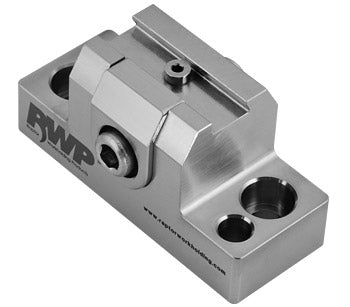

Raptor RWP-019SS Stainless Steel 0.375" Dovetail Fixture
SKU: RPT-RWP-019SS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-019SS Stainless Steel 0.375" Dovetail FixtureFull Description
Dovetail Width in. | 0.375 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 2 |
Max Workpiece Width in. | 2.50 |
Max Workpiece Length in. | 2.50 |
Max Workpiece Height in. | 2.50 |
Fixture Material | Stainless Steel |
Number of Clamps | 1 |
Clamp Part Number | RWP-CL305SQ |
Fixture Height in. | 1.250 |
This .375? dovetail fixture is utilized for milling applications. It offers superior clamping strength while allowing access to five sides of the workpiece. The Fixture comes with two mounting bolts and two Dowel Pins for location.
The standard RWP-019SS is manufactured from 17-4 Stainless Steel Heat Treated to H-1150.
The fixture clamp is made from 17-4 Stainless Steel.
Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical workpiece size dimensions (L x W x H): From: 1.25? x 0.990? x 0.50? To: 2.50? x 2.50? x 2.50?
Patented Design. Patent US8,672,310 B2
HAVE AN EDM APPLICATION?
USE RAPTOR’S STAINLESS STEEL DOVETAIL FIXTURES
Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.
ONE-STEP SETUP
Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.
