Brand: Raptor Workholding Products

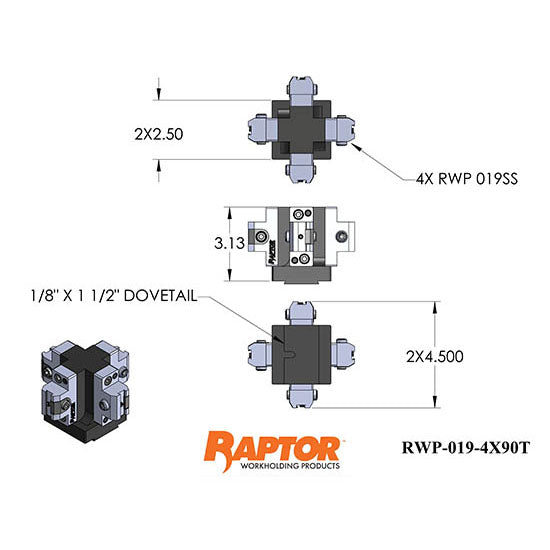

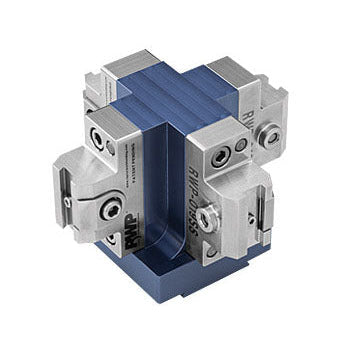

Raptor RWP-019-4X90T 90 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5" Dovetail Base
SKU: RPT-RWP-019-4X90T
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-019-4X90T 90 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5" Dovetail BaseFull Description
Compatible With | RWP-019SS |
---|---|
Connects to | RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS, RWP-026 |

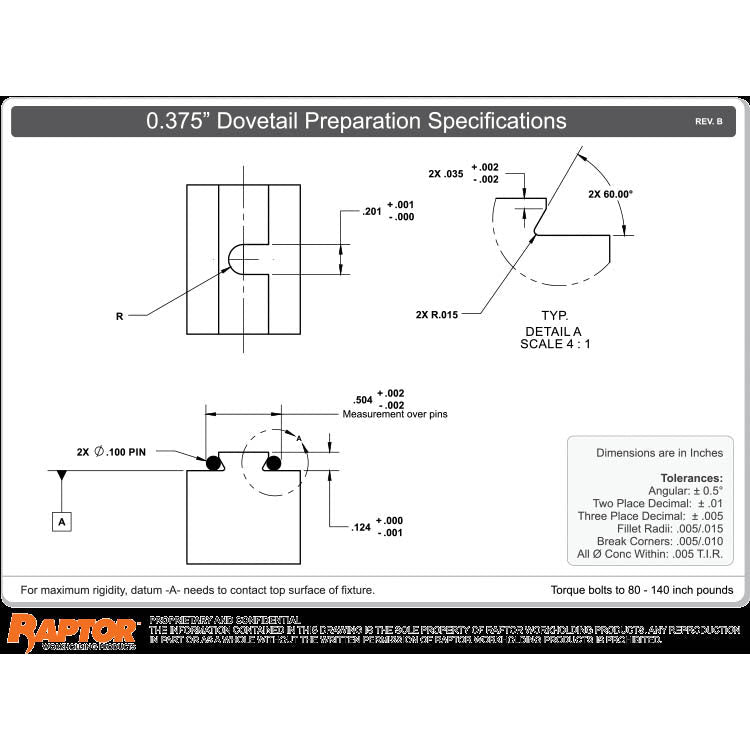

Dovetail Width in. | 0.375 |
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 2 |
Max Workpiece Length in. | 2.50 |
Max Workpiece Height in. | 2.50 |
Fixture Material | Aluminum and Stainless Steel |
Number of Clamps | 1 |
Clamp Part Number | RWP-CL305SQ |

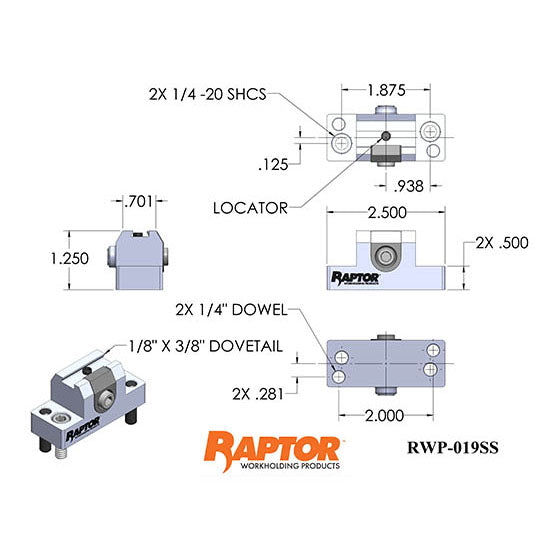

Utilizes (1) RWP-215 Body plus (4) RWP-019SS The RWP-019-4X90T is made from a 7075 Aluminum Base an the four RWP-019SS fixtures are made from 17-4 Stainless Steel.
The fixture clamps are made from 17-4 Stainless Steel.

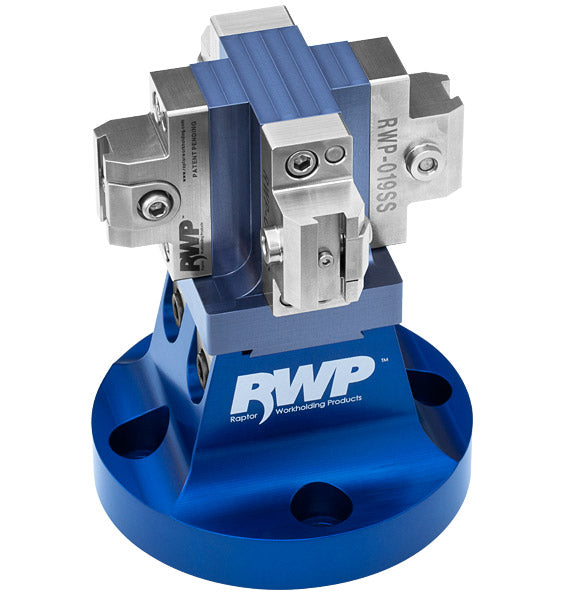

This Raptor Nest tombstone mounts to the top of any of the following 1.5? dovetail fixtures: RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS, RWP-026.
* Typical workpiece size dimensions (L x W x H): From: 1.25? x 0.990? x 0.50? To: 2.50? x 2.50? x 2.50?
Patented Design. Patent US8,672,310 B2
