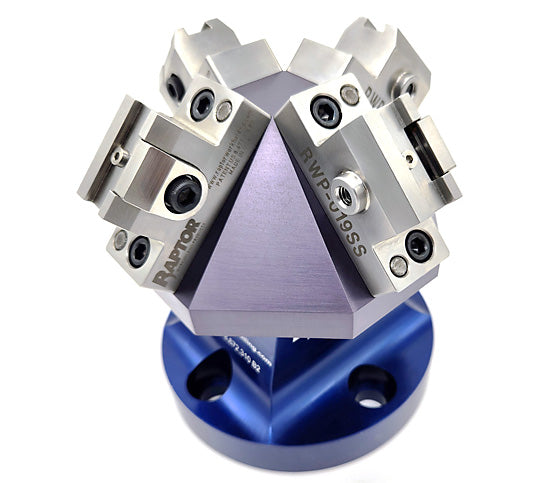

Raptor RWP-019-4X45T-PKG 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5? RWP-001 Dovetail Fixture Bundle

Brand: Raptor Workholding Products

Raptor RWP-019-4X45T-PKG 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5? RWP-001 Dovetail Fixture Bundle

SKU: RPT-RWP-019-4X45T-PKG
MPN: RWP-019-4X45T-PKG

  • Save $172.14
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $75 minimum for all Raptor product orders*

Precision meets performance in the Raptor RWP-019-4X45T-PKG 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5? RWP-001 Dovetail Fixture Bundle. RWP-019-4X45T-PKG 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5? RWP-001 Dovetail Fixture Bundle. 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5" Dovetail Base Aluminum 1.5" Dovetail Fixture 3.8" Dia. BC52mm Zero-Point. RWP-019-4X45T-PKG. SKU: RWP-019-4X45T-PKG Categories: , , Min Workpiece Size (L x W x H in.): 1.25 x 0.750 x 0.50
Max Workpiece Size (L x W x H in.): 2.50 x 2.50 x 2.50
Max Workpiece Weight lb.: 2
Dovetail Width in.: 0.375
Fixture Swing Diameter: 5.431
Height in.: 2.692 Save big with this discounted bundle that includes the RWP-019-4X45T and an RWP-001 dovetail fixture. The RWP-001 mounts directly to the Matsuura MAM72-35V. Risers and adapter plates are available to adapt to any machining center. 0.375? Dovetail 45 Degree Multi-Fixture with a 1.50? Dovetail Bottom The 45 degree Pyramid body utilizes four RWP-019SS dovetail fixtures. This fixture is designed specifically for five-axis machining applications and allows you to hold four workpieces at the same time. This fixture mounts to the following 1.50? Dovetail Raptor Fixtures: RWP-001, RWP-001SS, RWP-013, RWP-013SS, RWP-026, and RWP-027. The dovetail bottom allows for quick and easy change-out. Load-up the next pyramid with your workpieces while the other one is cycling. Changeover time is reduced and the productivity of your machine is drastically increased. The Pyramid Body is manufactured from 7075-T6511 aluminum. The RWP-019SS Fixtures are manufactured from 17-4 Stainless Steel Patented Design. Patent US8,672,310 B2 This fixture delivers exceptional stability and repeatability for high-speed operations. Upgrade your fixturing game—choose the Raptor RWP-019-4X45T-PKG 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5? RWP-001 Dovetail Fixture Bundle for reliable and efficient clamping.
