Brand: Raptor Workholding Products

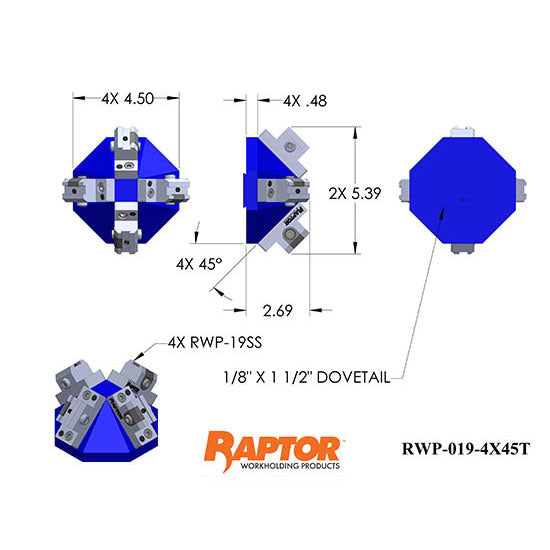

Raptor RWP-019-4X45T 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5" Dovetail Base

SKU: RPT-RWP-019-4X45T
MPN: RWP-019-4X45T

  • $2,967.90
    Unit price per
  • Save $4.75
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-019-4X45T 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5" Dovetail Base

Full Description

Compatible With

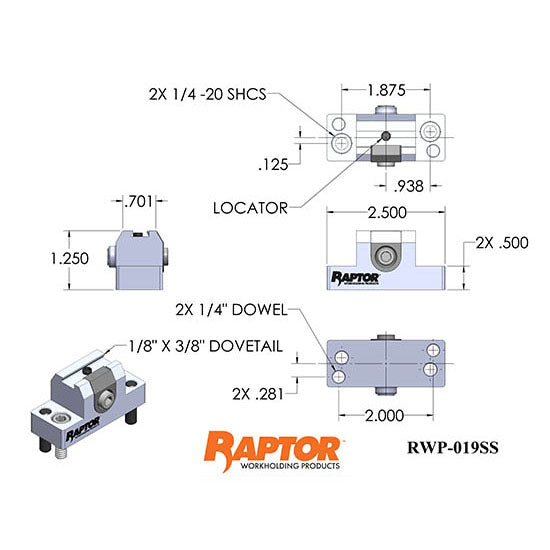

RWP-019SS

Connects to

RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS, RWP-026

Dovetail Width in.

0.375

Dovetail Height in.

0.1250

Max Workpiece Weight lb.

2

Max Workpiece Width in.

2.50

Max Workpiece Length in.

2.50

Max Workpiece Height in.

2.50

Fixture Material

Aluminum and Stainless Steel

Number of Clamps

1

Clamp Part Number

RWP-CL305SQ

Utilizes (1) RWP-216 Body plus (4) RWP-019SS The RWP-019-4X45T is made from a 7075 Aluminum Base and the four RWP-019SS fixtures are made from 17-4 Stainless Steel.

The fixture clamps are made from 17-4 Stainless Steel.

This Raptor Nest tombstone mounts to the top of any of the following 1.5? dovetail fixtures: RWP-001, RWP-001SS, RWP-004, RWP-013, RWP-013SS.

* Typical workpiece size dimensions (L x W x H): From: 1.25? x 0.990? x 0.50? To: 2.50? x 2.50? x 2.50?

Patented Design. Patent US8,672,310 B2

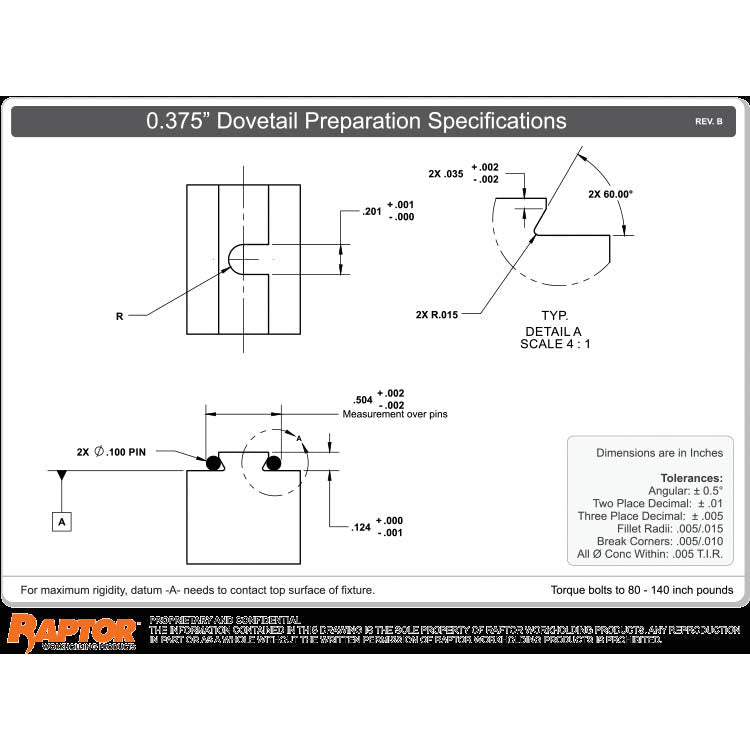

0.375" Dovetail Preparation Specifications
Raptor RWP-019-4X45T 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5
Raptor RWP-019-4X45T 45 degree tombstone 4 RWP-019SS Dovetail Fixtures with 1.5
