Raptor RWP-007SS Stainless Steel 0.75" Dovetail Fixture with 54mm System 3R Base

SKU: RPT-RWP-007SS
MPN: RWP-007SS

  • $1,193.14
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-007SS Stainless Steel 0.75" Dovetail Fixture with 54mm System 3R Base

Full Description

Dovetail Width in.

0.750

Dovetail Height in.

0.1250

Max Workpiece Weight lb.

7

Max Workpiece Width in.

3.75

Max Workpiece Length in.

3.75

Max Workpiece Height in.

3.75

Fixture Material

Stainless Steel

Number of Clamps

1

Clamp Part Number

RWP-CL302SQ

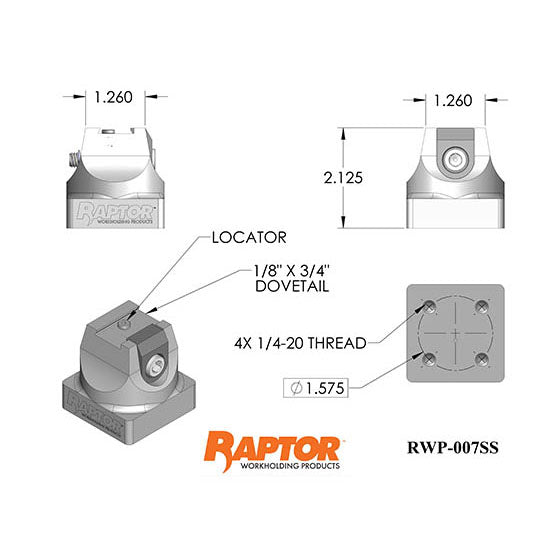

Fixture Height in.

2.125

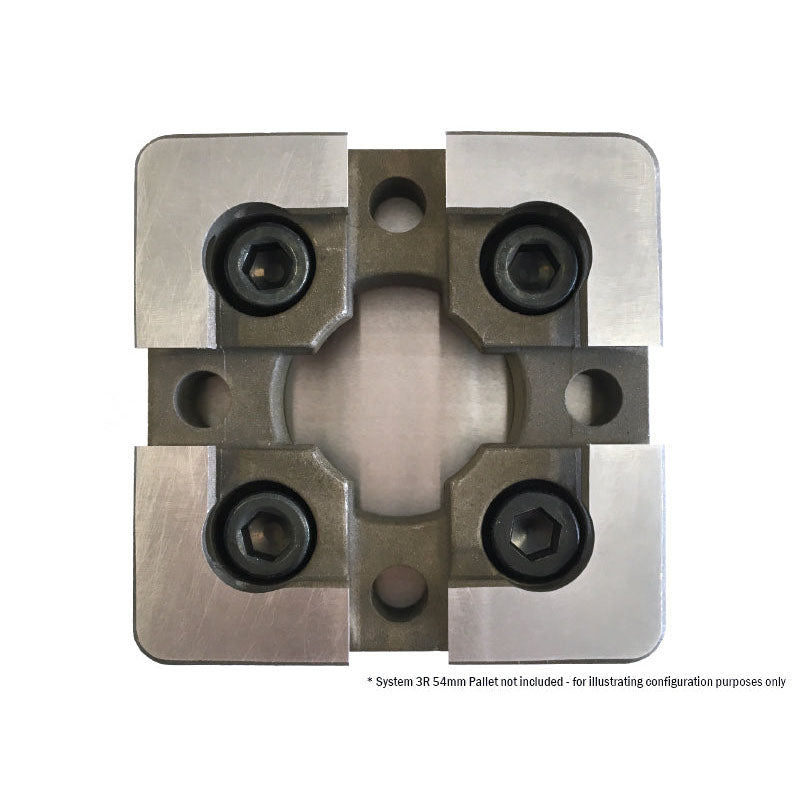

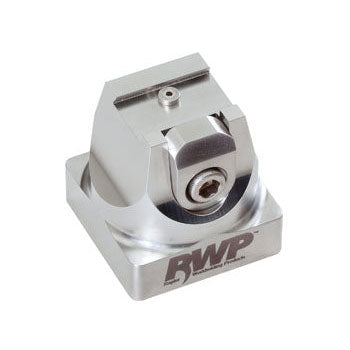

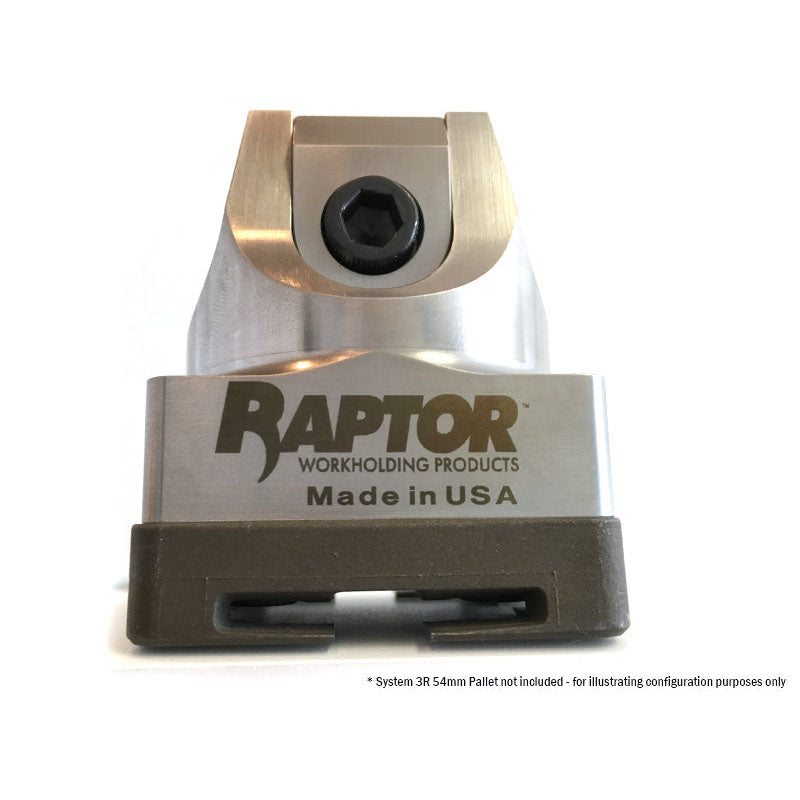

The RWP-007SS is a 0.750? dovetail fixture for milling applications. The RWP-007SS is designed to connect directly to System 3R 54mm pallets: MacroStd: 3R-651.7E-S / 3R-651.7E-XS and MacroHP: 3R-651.7E.P. Using the 3R pallet reduces downtime by allowing the machine operator to load workpieces on an alternate pallet in seconds.



The RWP-007SS is manufactured from 17-4 Heat Treated Stainless Steel.

The fixture clamp is made from 17-4 Stainless Steel.

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 1.26? x 1.3? x 0.50? To: 3.75? x 3.75? x 3.75?

Patented Design. Patent US8,672,310 B2

HAVE AN EDM APPLICATION?

USE RAPTOR’S STAINLESS STEEL DOVETAIL FIXTURES

Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.

ONE-STEP SETUP

Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.

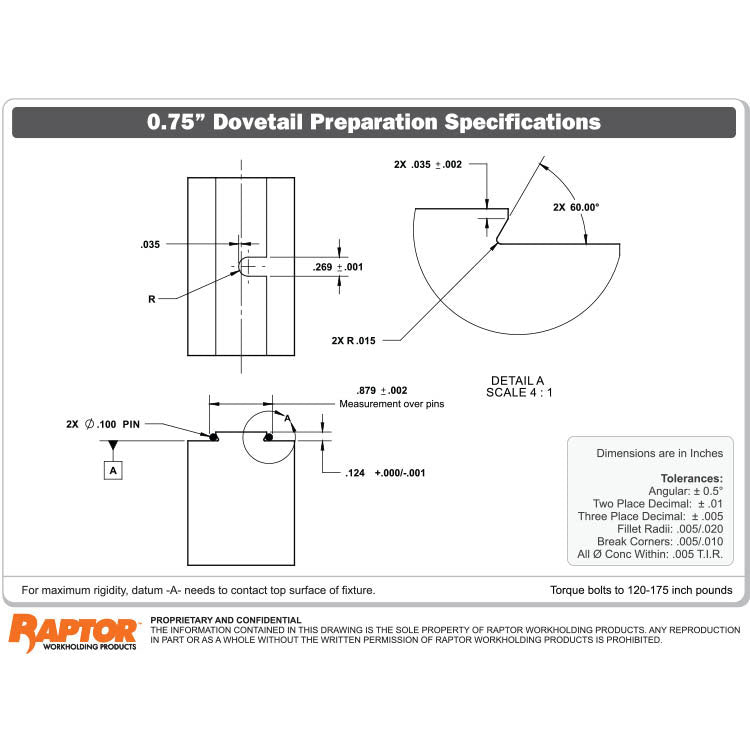

0.75 Dovetail Preparation Specifications
Raptor RWP-007SS Stainless Steel 0.75
