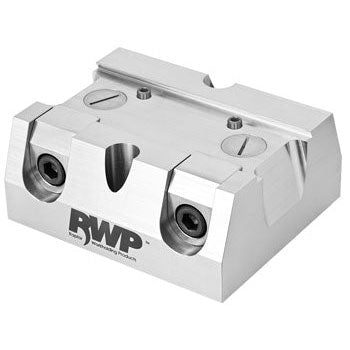

Raptor RWP-006SS Stainless Steel 2.25" Dovetail Fixture 3.8" Dia. BC

SKU: RPT-RWP-006SS
MPN: RWP-006SS

  • $3,161.48
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor RWP-006SS Stainless Steel 2.25" Dovetail Fixture 3.8" Dia. BC

Full Description

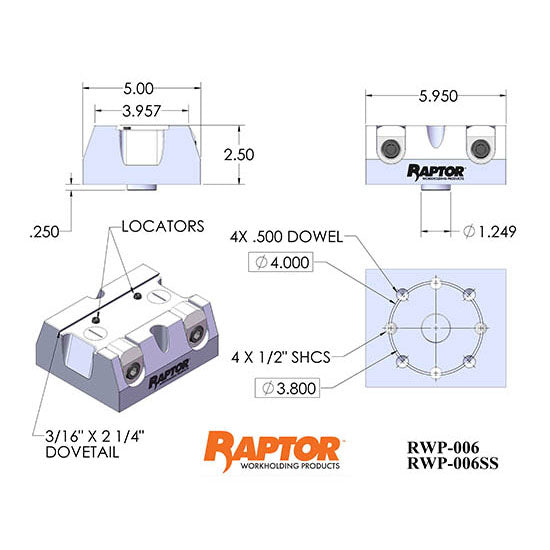

Dovetail Width in.

2.250

Dovetail Height in.

0.1875

Max Workpiece Weight lb.

168

Max Workpiece Width in.

12.00

Max Workpiece Length in.

12.00

Max Workpiece Height in.

12.00

Fixture Material

Stainless Steel

Number of Clamps

2

Clamp Part Number

RWP-CL303SQ

Fixture Height in.

2.500

The RWP-006SS is a 2.25” dovetail fixture for milling applications. The RWP-006SS uses two large stainless steel clamps to hold your workpiece. The fixture is manufactured from 17-4 heat-treated Stainless Steel.

The fixture clamps are made from 17-4 Stainless Steel.

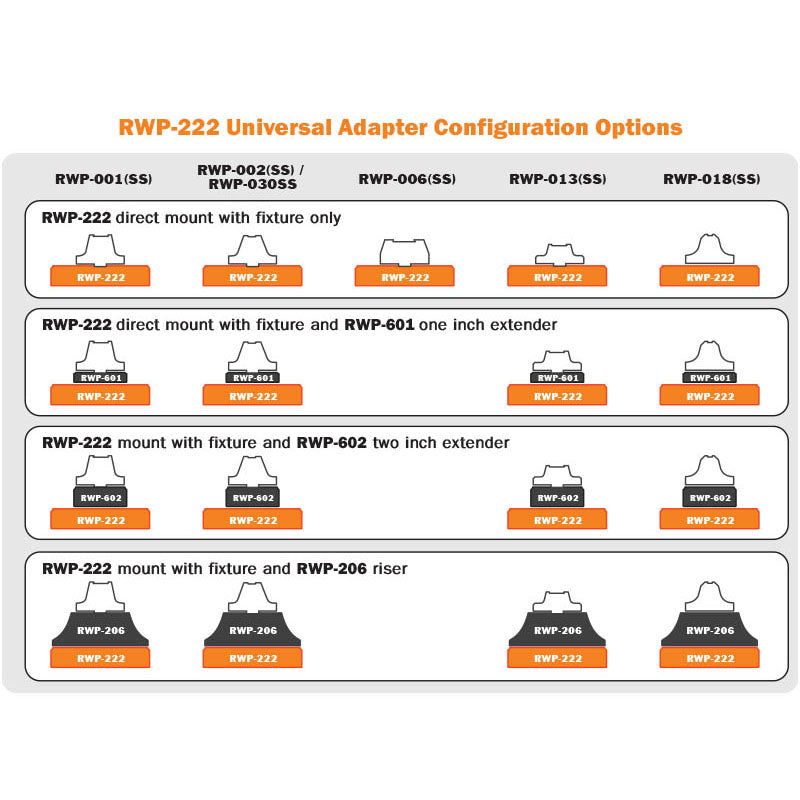

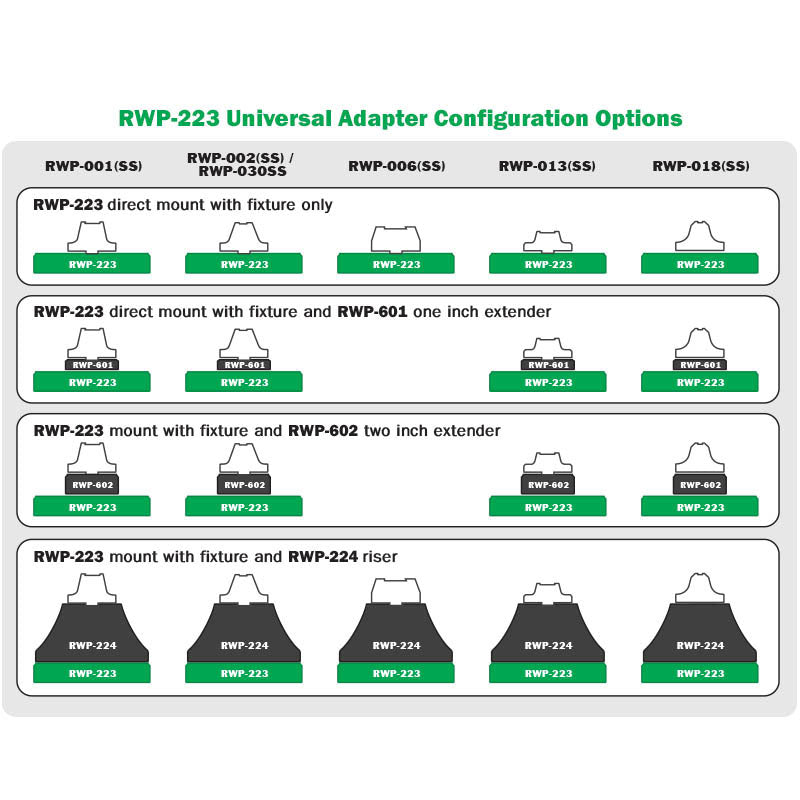

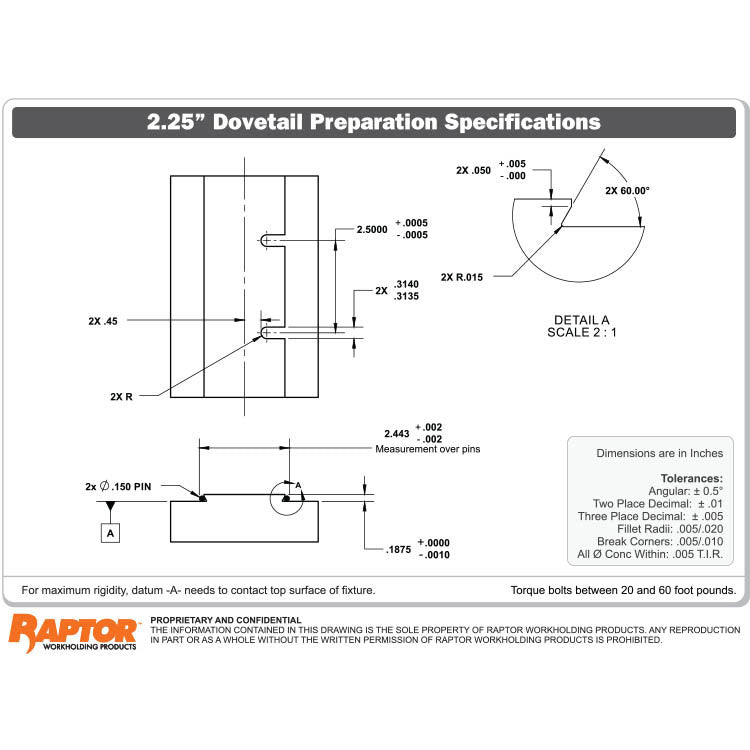

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 3/16? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

* Typical workpiece size dimensions (L x W x H): From: 5.95? x 3.96? x 0.50? To: 12? x 12? x 12?

Patented Design. Patent US8,672,310 B2

HAVE AN EDM APPLICATION?

USE RAPTOR’S STAINLESS STEEL DOVETAIL FIXTURES

Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.

ONE-STEP SETUP

Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.
