Raptor RWP-006 Aluminum 2.25" Dovetail Fixture 3.8" Dia. BC
SKU: RPT-RWP-006
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-006 Aluminum 2.25" Dovetail Fixture 3.8" Dia. BCFull Description

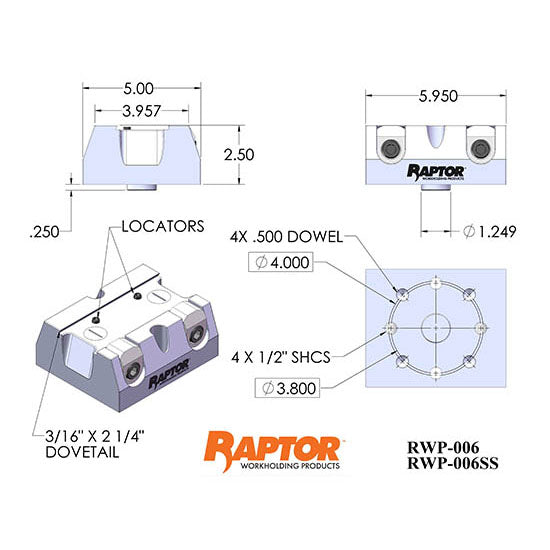

Dovetail Width in. | 2.250 |
---|---|
Dovetail Height in. | 0.1875 |
Max Workpiece Weight lb. | 80 |
Max Workpiece Width in. | 8.00 |
Max Workpiece Length in. | 10.00 |
Max Workpiece Height in. | 10.00 |
Fixture Material | Aluminum |
Number of Clamps | 2 |
Clamp Part Number | RWP-CL303SQ |
Fixture Height in. | 2.500 |

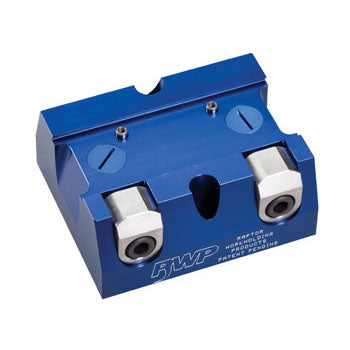

The RWP-006 is a 2.25” dovetail fixture for milling applications. The RWP-006 uses two large stainless steel clamps to hold your workpiece. The fixture is manufactured from 7075 Aluminum and anodized: Class 2 Type II.
The fixture clamps are made from 17-4 Stainless Steel.

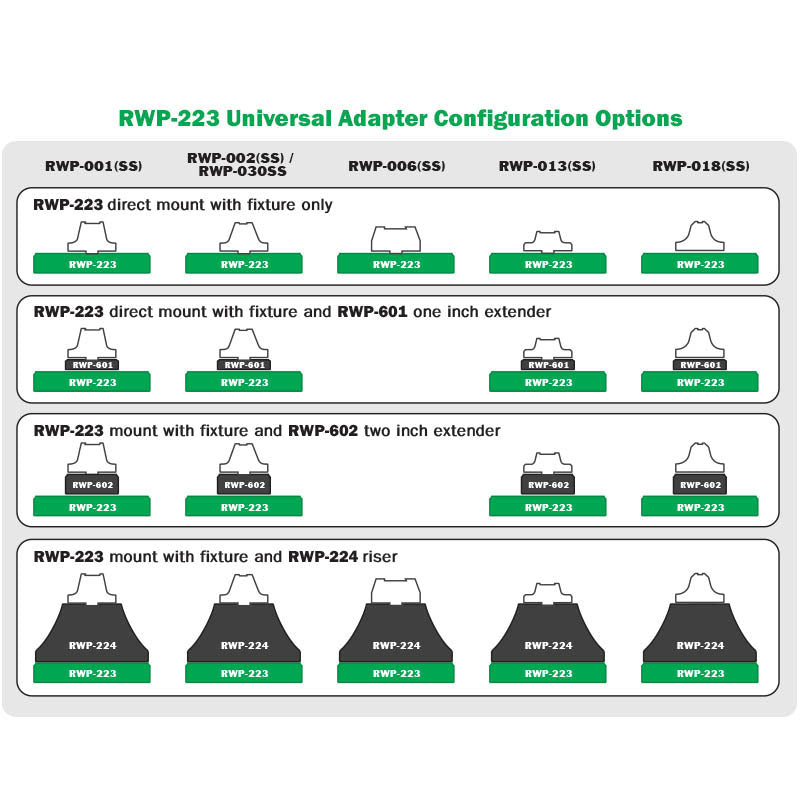

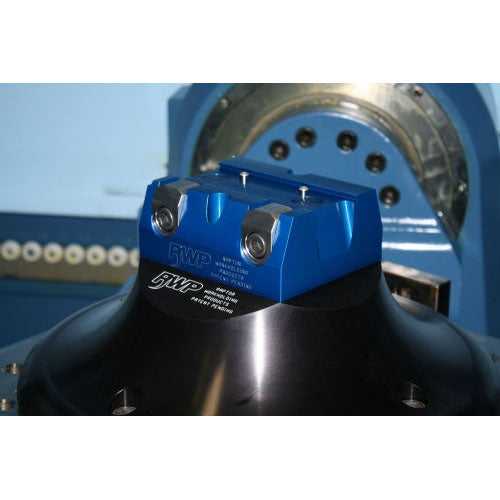

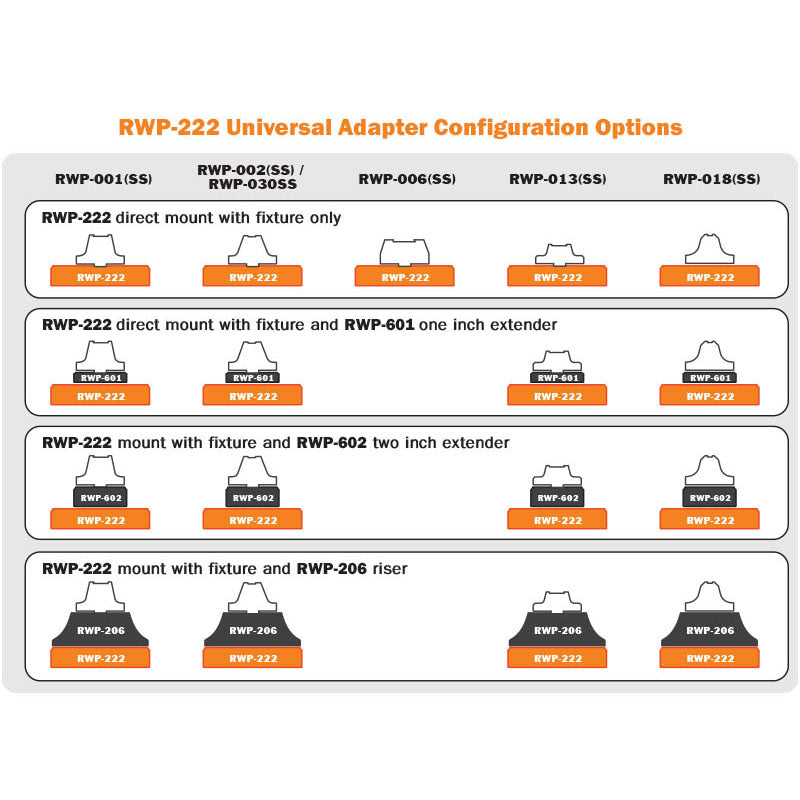

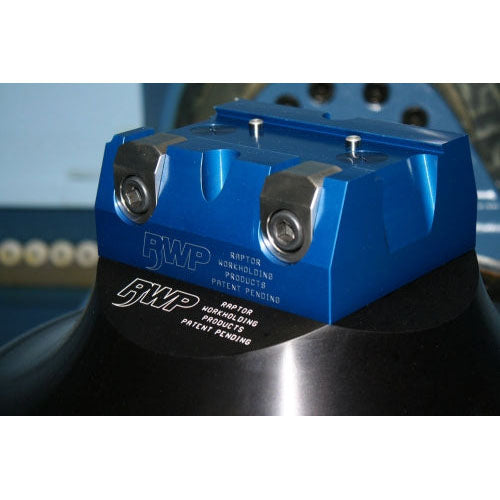

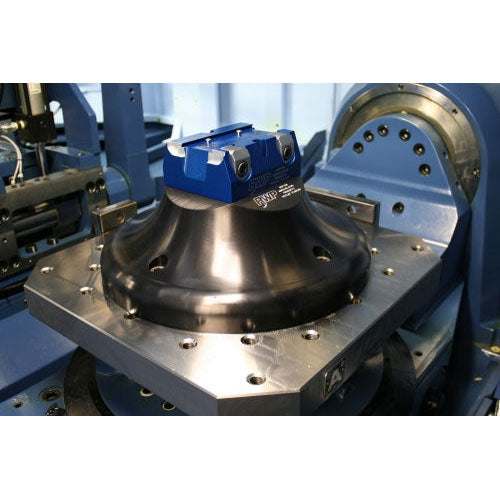

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 3/16? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.

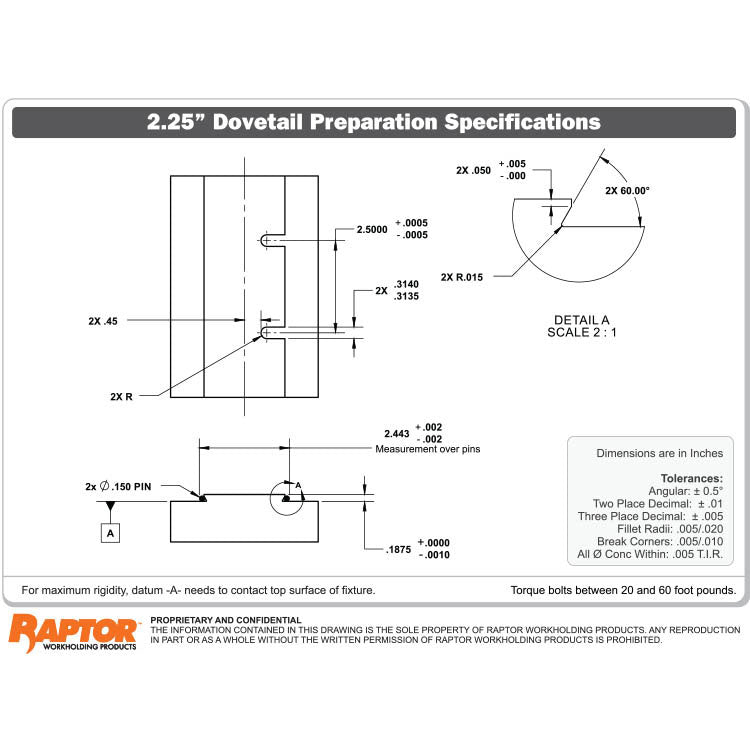

* Typical workpiece size dimensions (L x W x H): From: 5.95? x 3.96? x 0.50? To: 8.0? x 10.0? x 10.0?
Patented Design. Patent US8,672,310 B2
