Brand: Ingersoll Cutting Tools

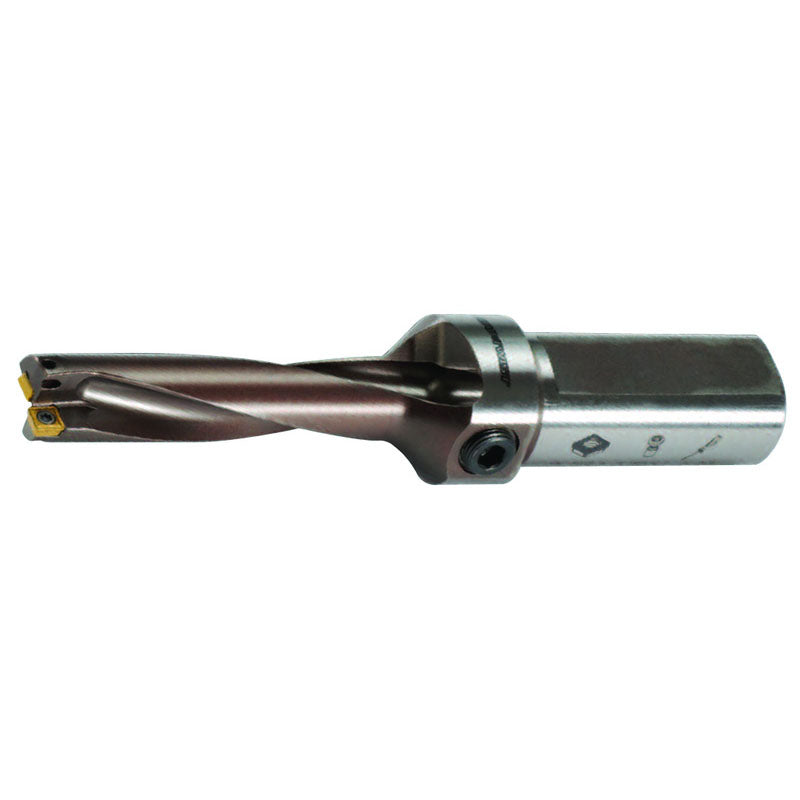

Ingersoll Cutting Tools IC523210707 QR0191038N5R02
SKU: FTS-IC523210707
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 6100258 QR0191038N5R02Full Description
| Cutting Diameter (DC) | 3/4" | Cutting Diameter Maximum (DCX) | 0.77" |
| Usable Length (LU) | 1-1/2" | Flange Diameter (DF) | 1.26" |
| Application | | Drill Mill | Drilling | | Point Length (PL) | 0.033" |
| Connection Diameter Machine Side (DCONMS) | 1" | Measurement Type | Inch |
| Shank Length (LS) | 3.16" | Body Material | Steel |
| Functional Length (LF) | 2.64" | Decimal Equivalent | 3/4" |
| Overall Length (OAL) | 5.79" |
Family Description
L:D Ratio - 2:1 For Lathe Use: Brass Coolant Fitting Should Be Ordered Separately
