Brand: Iscar

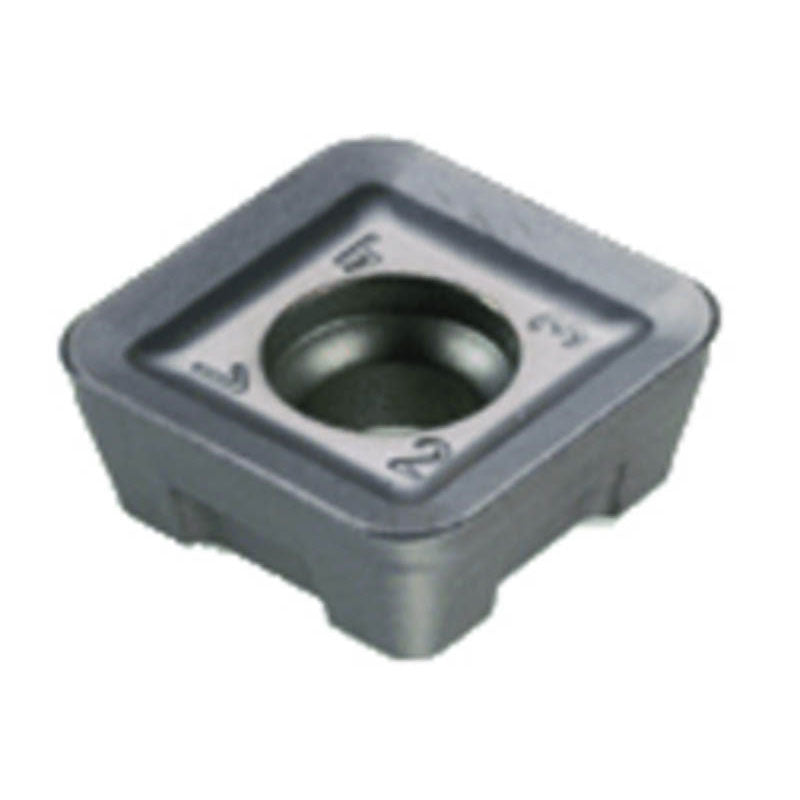

Iscar EH5604480 QDMT 120520PDTN-M IC910
SKU: FTS-EH5604480
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5604480 QDMT 120520PDTN-M IC910Full Description
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Bottom Shouldering | Facing | Milling Inserts | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Square |
| Insert Length (INSL) | 1/2" | Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
| Corner Radius (RE) | 0.0787" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394" | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197" | Minimum Feed per Tooth (fz(min)) | 0.0027 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Family Description
Neutral inserts for slotting
Inserts with corner radii larger than .0315" should be used only on the face of the SDK cutter.
