Brand: HALDER

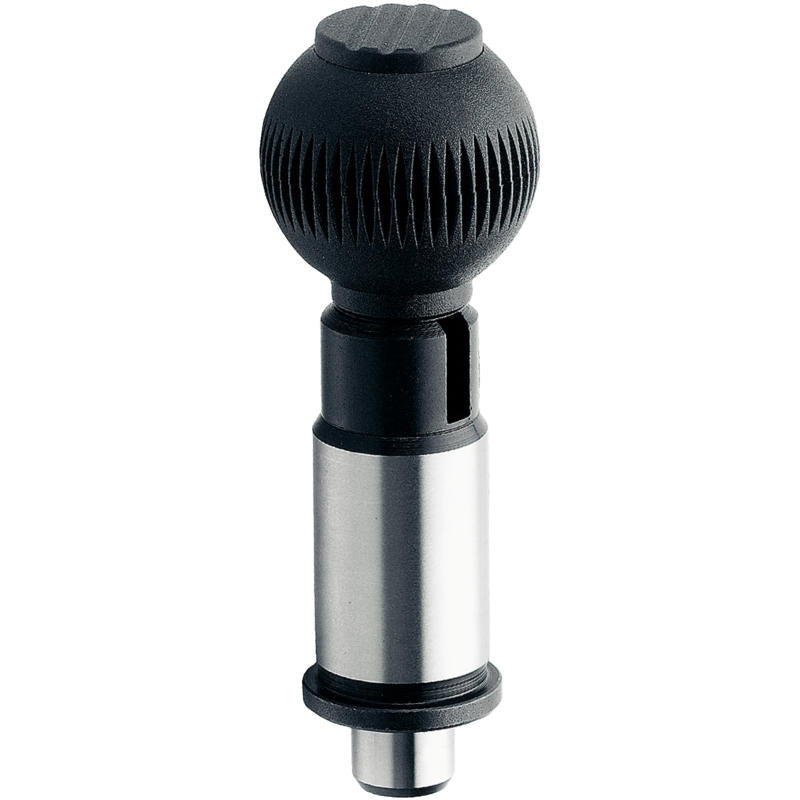

PRECISION INDEX PLUNGERS - 22130.0010
SKU: EH-22130.0010
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Precision Index Plungers, with cylindrical pin/without locking | d1=10 mm | 22130.0010Halder 22130.0010 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Precision index plungers together with bushings are a perfect combination for quick positioning and mounting.
The precise tolerance of both, the precision index plunger and the bushing, guarantees a high repeatability of these two elements.
Material
Pin
- Case-hardened steel, case-hardened, blackened and ground
Bushing
- Case-hardened steel, case-hardened, blackened and ground
Body
- Case-hardened steel, case-hardened, blackened and ground
Ball knob
- Thermoplastic, greyish black
Assembly
To achieve precise setting, ball grip and index plunger have to be glued after assembly.
Operation
When using locking index plungers the knob is pulled out and turned 90–‘.
