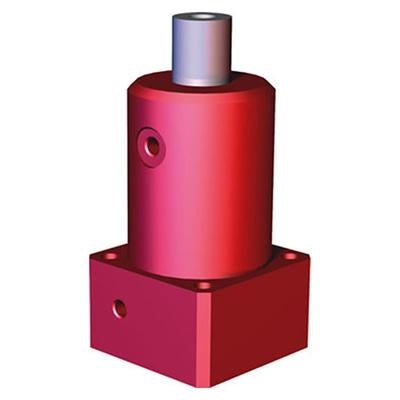

DESTACO 035-232-190 PNEUMATIC SWING CLAMP, LESS ARM

Brand: DESTACO

DESTACO 035-232-190 PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-232-190
MPN: 035-232-190

  • $336.72
    Unit price per
  • Save $26.04
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 035-232-190 PNEUMATIC SWING CLAMP, LESS ARM is part of the SELECT line of pneumatic swing/pull clamps, designed for applications that don't require hydraulic power. With fast action and the ability to generate up to 50 pounds of clamping force, these clamps are powered by shop air. The swing motion can go up to 90 degrees and the clamp has two styles of arms, including a double-locked design for extra rigidity. Mounted with a threaded body, this clamp has a 1.060 inch stroke and a 1.26 inch cylinder bore. It provides 30 pounds of clamping force at 5Bar [72Psi] and has a 1/8 NPT air port size. The air consumption is 0.008 in³ per double stroke at 7 psi and the stroke during rotation is 0.57 inches. The vertical clamp stroke is 0.49 inches.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 035-232-190 PNEUMATIC SWING CLAMP, LESS ARM

DESTACO 035-232-190 PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.

  • Swing motion available in 90 degrees
  • Two styles of arms
  • Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
  • Threaded body for mounting through fixture plates

Stroke (in) 1.060
Cylinder Bore (in) 1.26
Clamping Force @ 5Bar[72Psi] (lbf.) 30
Mount Flanged Body
Replacement Seal Kit 905517
Swing Direction RH
Air Port size 1/8 NPT
Air Consumption (per double stroke at 7 psi) (in³) 0.008
Stroke during rotation (in) 0.57
Vertical clamp stroke (in) 0.49
Sensor Ready No
Weight (lb) 1.13
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
