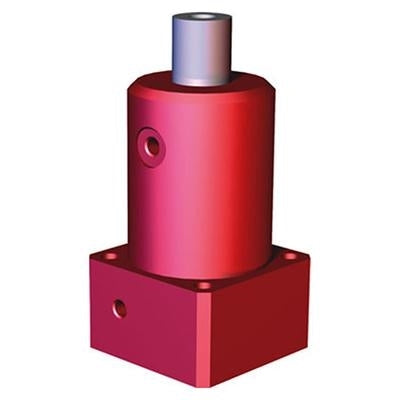

DESTACO 035-225-290 PNEUMATIC SWING CLAMP, LESS ARM

Brand: DESTACO

DESTACO 035-225-290 PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-225-290
MPN: 035-225-290

  • $309.91
    Unit price per
  • Save $43.78
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the unparalleled performance of DESTACO 035-225-290 PNEUMATIC SWING CLAMP, LESS ARM. Designed for applications without hydraulic power, these pneumatic swing/pull clamps generate up to 50 pounds of clamping force with the push of a button. Enjoy a smooth swing motion of 90 degrees thanks to two styles of arms and a bolted double-locked arm design for extra rigidity. Easy to install with a threaded body, this clamp is perfect for mounting through fixture plates. Get yours now and witness its impressive stroke of 1.050 inches, cylinder bore of 0.98 inches, and clamping force of 20 lbf. Experience the LH swing direction, 10-32 air port size, and minimal air consumption of 0.005 in³ per double stroke at 7 psi. With a rotation stroke of 0.54 inches and vertical clamp stroke of 0.51 inches, this is a great addition to any application.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 035-225-290 PNEUMATIC SWING CLAMP, LESS ARM

DESTACO 035-225-290 PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.



  • Swing motion available in 90 degrees
  • Two styles of arms
  • Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
  • Threaded body for mounting through fixture plates

Stroke (in) 1.050
Cylinder Bore (in) 0.98
Clamping Force @ 5Bar[72Psi] (lbf.) 20
Mount Flanged Body
Replacement Seal Kit 905516
Swing Direction LH
Air Port size 10-32
Air Consumption (per double stroke at 7 psi) (in³) 0.005
Stroke during rotation (in) 0.54
Vertical clamp stroke (in) 0.51
Sensor Ready No
Weight (lb) 0.56
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
