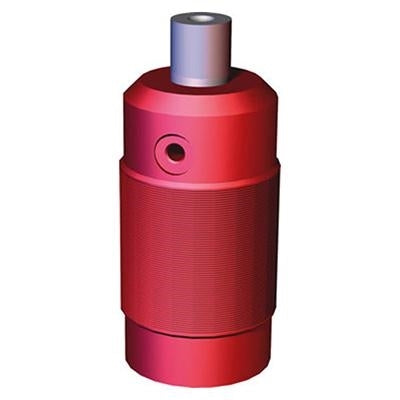

DESTACO 035-150-290 PNEUMATIC SWING CLAMP, LESS ARM

Brand: DESTACO

DESTACO 035-150-290 PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-150-290
MPN: 035-150-290

  • $499.36
    Unit price per
  • Save $38.62
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Revolutionize your clamping process with the DESTACO 035-150-290 PNEUMATIC SWING CLAMP, LESS ARM. This pneumatic clamp, designed for non-hydraulic applications, delivers up to 50 pounds of force using only shop air. With 90 degrees of swing motion and two arm styles available, its double-locked design ensures extra rigidity for precision clamping. Mount this threaded clamp through fixture plates and experience its impressive 1.180-inch stroke and 1.97-inch cylinder bore. Offering LH swing direction, a 1/8 NPT air port, and a lightweight 1.81-pound design, this product is a game-changer in the world of light-duty pneumatic clamping.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 035-150-290 PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.

  • Swing motion available in 90 degrees
  • Two styles of arms
  • Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
  • Threaded body for mounting through fixture plates

Stroke (in) 1.180
Cylinder Bore (in) 1.97
Clamping Force @ 5Bar[72Psi] (lbf.) 69
Mount Threaded Body
Replacement Seal Kit 905519
Swing Direction LH
Air Port size 1/8 NPT
Air Consumption (per double stroke at 7 psi) (in³) 0.023
Jam Nut 051-250-160
Stroke during rotation (in) 0.63
Vertical clamp stroke (in) 0.55
Sensor Ready No
Weight (lb) 1.81
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
