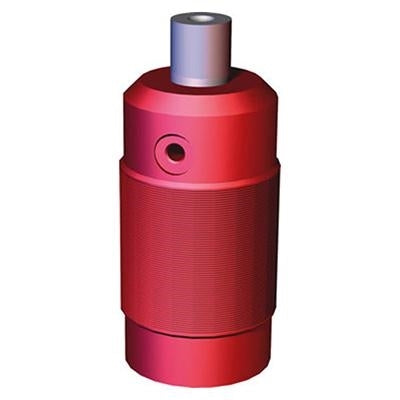

DESTACO 035-140-290 - PNEUMATIC SWING CLAMP, LESS ARM

Brand: DESTACO

DESTACO 035-140-290 - PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-140-290
MPN: 035-140-290

  • $449.07
    Unit price per
  • Save $34.74
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 035-140-290 - PNEUMATIC SWING CLAMP, LESS ARM is ideal for applications that don't require hydraulic power. With a fast and powerful clamping force of up to 50 pounds from shop air, this clamp offers a 90 degree swing motion. It comes in two arm styles, including a double-locked design for added stability. The threaded body makes it easy to mount onto fixture plates. With a stroke of 1.200 inches and a cylinder bore of 1.57 inches, this clamp provides a clamping force of 60 pounds at 5Bar [72Psi]. Plus, the LH swing direction and 1/8 NPT air port size make it a versatile choice. Its small size and weight (1.31 lbs) make it a perfect fit for light-duty pneumatic clamping needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 035-140-290 - PNEUMATIC SWING CLAMP, LESS ARM

DESTACO 035-140-290 - PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.



  • Swing motion available in 90 degrees
  • Two styles of arms
  • Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
  • Threaded body for mounting through fixture plates

Stroke (in) 1.200
Cylinder Bore (in) 1.57
Clamping Force @ 5Bar[72Psi] (lbf.) 60
Mount Threaded Body
Replacement Seal Kit 905518
Swing Direction LH
Air Port size 1/8 NPT
Air Consumption (per double stroke at 7 psi) (in³) 0.015
Jam Nut 051-225-160
Stroke during rotation (in) 0.57
Vertical clamp stroke (in) 0.63
Sensor Ready No
Weight (lb) 1.31
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
