Brand: DESTACO

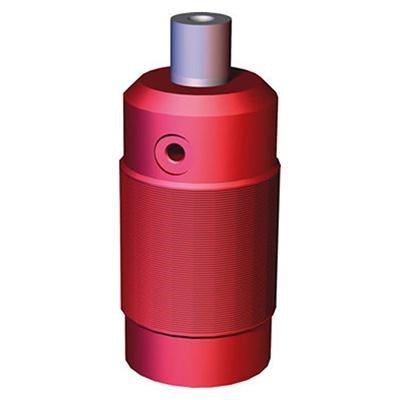

DESTACO 035-132-190 PNEUMATIC SWING CLAMP, LESS ARM
SKU: DE-STA-CO-035-132-190
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 035-132-190 PNEUMATIC SWING CLAMP, LESS ARM - the perfect solution for your clamping needs! With its fast-acting capability, this clamp can generate up to 50 pounds of clamping force using shop air. Its versatile design allows for a swing motion of 90 degrees, and it comes in two styles of arms for added flexibility. Plus, the double-locked arm design ensures extra rigidity and stability. Don't miss out on this amazing product in our Light-Duty Pneumatic Clamping family!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 035-132-190 PNEUMATIC SWING CLAMP, LESS ARM
SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.
- Swing motion available in 90 degrees
- Two styles of arms
- Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
- Threaded body for mounting through fixture plates
Stroke (in) | 1.130 |
Cylinder Bore (in) | 1.26 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 30 |
Mount | Threaded Body |
Replacement Seal Kit | 905517 |
Swing Direction | RH |
Air Port size | 1/8 NPT |
Air Consumption (per double stroke at 7 psi) (in³) | 0.008 |
Jam Nut | 051-187-160 |
Stroke during rotation (in) | 0.56 |
Vertical clamp stroke (in) | 0.57 |
Sensor Ready | No |
Weight (lb) | 0.94 |
Product Series Description | Swing Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | pneumatic swing clamps |
