Brand: DESTACO

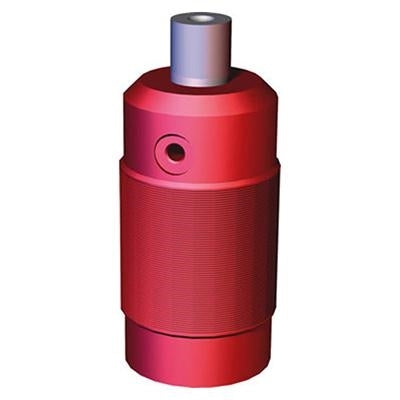

DESTACO 035-125-290 PNEUMATIC SWING CLAMP, LESS ARM
SKU: DE-STA-CO-035-125-290
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 035-125-290 PNEUMATIC SWING CLAMP, LESS ARM - the perfect solution for applications that don't require hydraulics. With just shop air, these clamps can deliver an impressive 50 pounds of clamping force. Featuring a 90 degree swing motion and two arm styles, these fast acting clamps are designed for rigidity and precision. With its compact threaded body, this clamp can easily be mounted through fixture plates. Its 1.040 inch stroke and 0.98 inch cylinder bore provide a strong grip. Plus, with an air port size of 10-32 and minimal air consumption, this clamp is efficient and effective. Whether you need a left-handed swing direction or a double stroke at 7 psi, this clamp has you covered. Don't wait any longer to upgrade your clamping game - get the DESTACO PNEUMATIC SWING CLAMP today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 035-125-290 PNEUMATIC SWING CLAMP, LESS ARM
SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.
- Swing motion available in 90 degrees
- Two styles of arms
- Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
- Threaded body for mounting through fixture plates
Stroke (in) | 1.040 |
Cylinder Bore (in) | 0.98 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 20 |
Mount | Threaded Body |
Replacement Seal Kit | 905516 |
Swing Direction | LH |
Air Port size | 10-32 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.005 |
Jam Nut | 051-150-160 |
Stroke during rotation (in) | 0.51 |
Vertical clamp stroke (in) | 0.53 |
Sensor Ready | No |
Weight (lb) | 0.56 |
Product Series Description | Swing Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | pneumatic swing clamps |
