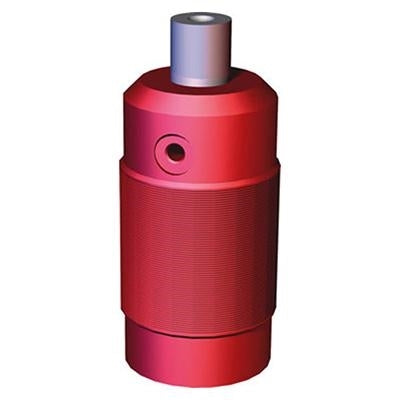

DESTACO 035-125-190 PNEUMATIC SWING CLAMP, LESS ARM

Brand: DESTACO

DESTACO 035-125-190 PNEUMATIC SWING CLAMP, LESS ARM

SKU: DE-STA-CO-035-125-190
MPN: 035-125-190

  • $340.68
    Unit price per
  • Save $26.35
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Discover the power and efficiency of DESTACO 035-125-190 PNEUMATIC SWING CLAMP, LESS ARM. With the ability to generate 50 pounds of clamping force from shop air, this versatile clamp is perfect for applications not requiring hydraulic power. Designed with a fast acting motion and available in 90 degrees of swing, this clamp offers a double-locked arm design for extra rigidity. Its threaded body allows for easy mounting through fixture plates, making it a must-have in any workshop. Experience the convenience and reliability of the SELECT line of pneumatic swing/pull clamps, with a cylinder bore of 0.98 inches and 0.005 in³ of air consumption per double stroke at 7 psi. Order now and step up your clamping game with the DESTACO Swing Clamp.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 035-125-190 PNEUMATIC SWING CLAMP, LESS ARM

SELECT line of pneumatic swing/pull clamps are designed for applications not requiring hydraulic power. The fast acting clamps can generate up to 50 pounds of clamping force from shop air.

  • Swing motion available in 90 degrees
  • Two styles of arms
  • Double-locked arm design is bolted to piston shaft and around shaft diameter for extra rigidity
  • Threaded body for mounting through fixture plates
  • Designed for applications not requiring hydraulic power

Stroke (in) 1.040
Cylinder Bore (in) 0.98
Clamping Force @ 5Bar[72Psi] (lbf.) 20
Mount Threaded Body
Replacement Seal Kit 905516
Swing Direction RH
Air Port size 10-32
Air Consumption (per double stroke at 7 psi) (in³) 0.005
Jam Nut 051-150-160
Stroke during rotation (in) 0.51
Vertical clamp stroke (in) 0.53
Sensor Ready No
Weight (lb) 0.56
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
