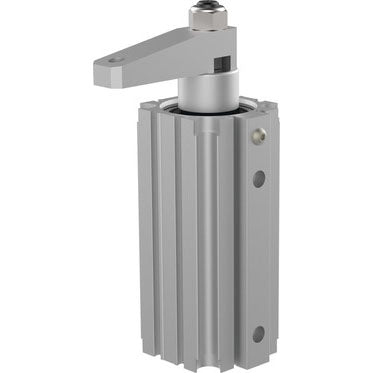

DESTACO 9550-2L PNEUMATIC SWING CLAMP 50MM LH

Brand: DESTACO

DESTACO 9550-2L PNEUMATIC SWING CLAMP 50MM LH

SKU: DE-STA-CO-9550-2L
MPN: 9550-2L

  • $579.25
    Unit price per
  • Save $44.80
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 9550-2L PNEUMATIC SWING CLAMP 50MM LH is perfect for tight spaces! Its innovative, versatile design has been upgraded to install easily onto any surface or with mounting screws directly into the body. With a unique 90° swing on a horizontal plane, the clamp arm moves downward for a secure hold. The shielded piston rod protects against weld spatter. The cylinder bore is 1.97 inches with a stroke of 0.790 inches, and the clamping force reaches 196 pounds at 5Bar [72Psi]. Swing in the Left Hand direction with a 1/8 NPT air port size. Get the best in pneumatic swing clamps with the DESTACO 9550-2L PNEUMATIC SWING CLAMP.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 9550-2L PNEUMATIC SWING CLAMP 50MM LH

PNEUMATIC SWING CLAMPS FOR TIGHT SPACES - 9500 SERIES

The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.

  • Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
  • Shielded piston rod for protection from weld spatter
  • Optional mounting accessories for side flange or tapped mounting
  • Available in four bore sizes, clamping arms sold separately
Stroke (in) 0.790
Cylinder Bore (in) 1.97
Clamping Force @ 5Bar[72Psi] (lbf.) 196
Mount Block: Side flange, tapped hole, standard
Swing Direction LH
Air Port size 1/8 NPT
Replacement Seal Kit 955092
Foot Mount Kit 955060
Tapped Hole Mount Kit 955061
Standard Mount Kit 955062
Air Consumption (per double stroke at 7 psi) (in³) 0.026
Stroke during rotation (in) 0.00
Vertical clamp stroke (in) 0.79
Weight (lb) 3.33
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
