Brand: DESTACO

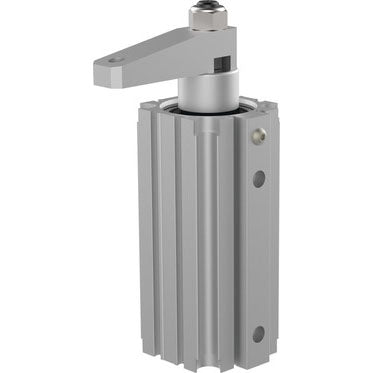

DESTACO 9540-2GL PNEUMATIC SWING CLAMP 40MM LH G PORTS

SKU: DE-STA-CO-9540-2GL
MPN: 9540-2GL

$550.76
Unit price per
Save $42.59

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the upgraded 9500 series of DESTACO 9540-2GL PNEUMATIC SWING CLAMPS! Now even more versatile and easier to install, these new versions maintain all the innovative features of the original while offering the added option of mounting to any face or with screws threaded directly into the body. With a unique design that allows the clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke, along with a shielded piston rod for protection against weld spatter, this is the ultimate clamping solution. Achieve precise and powerful clamping with a stroke of 0.790 inches and a cylinder bore of 1.57 inches, delivering a clamping force of 123 lbf. when operated at 5 Bar [72Psi]. Available with a left hand swing direction.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 9540-2GL PNEUMATIC SWING CLAMP 40MM LH G PORTS

The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.

Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
Shielded piston rod for protection from weld spatter
Optional mounting accessories for side flange or tapped mounting
Available in four bore sizes, clamping arms sold separately

Stroke (in)	0.790
Cylinder Bore (in)	1.57
Clamping Force @ 5Bar[72Psi] (lbf.)	123
Mount	Block: Side flange, tapped hole, standard
Swing Direction	LH
Air Port size	G-1/8
Replacement Seal Kit	954092
Foot Mount Kit	954060
Tapped Hole Mount Kit	954061
Standard Mount Kit	954062
Air Consumption (per double stroke at 7 psi) (in³)	0.016
Stroke during rotation (in)	0.00
Vertical clamp stroke (in)	0.79
Weight (lb)	1.98
Product Series Description	Swing Clamp
Product Function	Clamping
Product Family	Light-Duty Pneumatic Clamping
Product Group	pneumatic swing clamps
