Brand: DESTACO

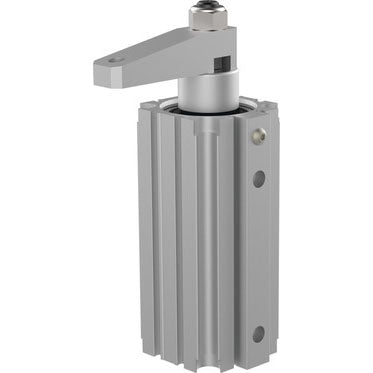

DESTACO 9530-2GL PNEUMATIC SWING CLAMP 30MM LH G PORTS
SKU: DE-STA-CO-9530-2GL
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 9530-2GL PNEUMATIC SWING CLAMP 30MM LH G PORTS offers a versatile and easy-to-install upgrade from the 9500 series. With the same innovative features as the original, these new versions can now be effortlessly mounted on any face or with mounting screws threaded directly into the body. This unique design allows the clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke, while the shielded piston rod provides protection from weld spatter. With a stroke of 0.790 inches and a cylinder bore of 1.26 inches, this clamp offers a clamping force of 76 lbf. @ 5Bar[72Psi]. Enjoy the convenience of a G-1/8 air port.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 9530-2GL PNEUMATIC SWING CLAMP 30MM LH G PORTS
The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.
- Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
- Shielded piston rod for protection from weld spatter
- Optional mounting accessories for side flange or tapped mounting
- Available in four bore sizes, clamping arms sold separately
| Stroke (in) | 0.790 |
| Cylinder Bore (in) | 1.26 |
| Clamping Force @ 5Bar[72Psi] (lbf.) | 76 |
| Mount | Block: Side flange, tapped hole, standard |
| Air Port size | G-1/8 |
| Replacement Seal Kit | 953092 |
| Foot Mount Kit | 953060 |
| Tapped Hole Mount Kit | 953061 |
| Standard Mount Kit | 953062 |
| Swing Direction | LH |
| Air Consumption (per double stroke at 7 psi) (in³) | 0.010 |
| Stroke during rotation (in) | 0.00 |
| Vertical clamp stroke (in) | 0.79 |
| Weight (lb) | 1.25 |
| Product Series Description | Swing Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | pneumatic swing clamps |
