Brand: DESTACO

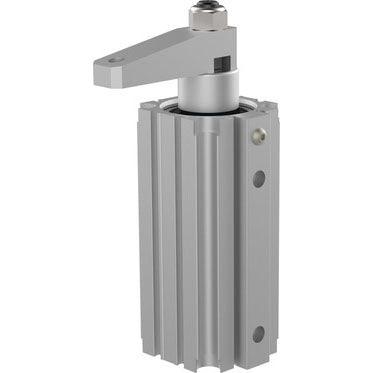

DESTACO 9530-2L PNEUMATIC SWING CLAMP 30MM LH
SKU: DE-STA-CO-9530-2L
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Improve the versatility and installation process of the 9500 series with our upgraded DESTACO 9530-2L PNEUMATIC SWING CLAMP 30MM Left Hand. Its innovative features remain the same, but now you can easily mount it on any surface or directly thread screws into the body. This unique design allows for a 90° swing on a horizontal plane followed by a downward clamping stroke. Shielded piston rod protects against weld spatter. This clamp offers a stroke of 0.790 inches, 1.26 inch cylinder bore, 76 pounds of clamping force at 5Bar [72Psi], and an air port size of 1/8 NPT. Trust us, this is a must-have product for any passionate manufacturer.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 9530-2L PNEUMATIC SWING CLAMP 30MM LH
The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.
- Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
- Shielded piston rod for protection from weld spatter
- Optional mounting accessories for side flange or tapped mounting
- Available in four bore sizes, clamping arms sold separately
| Stroke (in) | 0.790 |
| Cylinder Bore (in) | 1.26 |
| Clamping Force @ 5Bar[72Psi] (lbf.) | 76 |
| Mount | Block: Side flange, tapped hole, standard |
| Air Port size | 1/8 NPT |
| Replacement Seal Kit | 953092 |
| Foot Mount Kit | 953060 |
| Tapped Hole Mount Kit | 953061 |
| Standard Mount Kit | 953062 |
| Swing Direction | LH |
| Air Consumption (per double stroke at 7 psi) (in³) | 0.010 |
| Stroke during rotation (in) | 0.00 |
| Vertical clamp stroke (in) | 0.79 |
| Weight (lb) | 1.25 |
| Product Series Description | Swing Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | pneumatic swing clamps |
