Brand: DESTACO

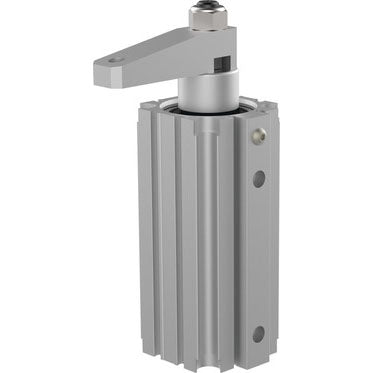

DESTACO 9522-2L PNEUMATIC SWING CLAMP 22MM LH

SKU: DE-STA-CO-9522-2L
MPN: 9522-2L

$397.90
Unit price per
Save $30.77

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Passionately believe in the value of the DESTACO 9522-2L PNEUMATIC SWING CLAMP 22MM Left Hand and its versatility and ease of installation. The new versions have all the same features as the original, but now offer the convenience of being able to mount to any face or using threaded mounting screws. The unique design allows for a 90° swing and protection from weld spatter, while optional accessories allow for side flange or tapped mounting. This cylinder offers a 0.500 inch stroke and 0.86 inch cylinder bore, delivering a clamping force of 34 lbf. at 5Bar (72Psi). M5 air port size. Elevate your clamping capabilities with the DESTACO 9522-2L PNEUMATIC SWING CLAMP!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 9522-2L PNEUMATIC SWING CLAMP 22MM LH

The 9500 series has been upgraded to make them more versatile and easier to install. These new versions have all the same innovative features as the original but can now be mounted to any face or with mounting screws threaded directly into the body.

Unique design allows clamp arm to swing 90° on a horizontal plane before moving downward on its clamping stroke
Shielded piston rod for protection from weld spatter
Optional mounting accessories for side flange or tapped mounting
Available in four bore sizes, clamping arms sold separately

Stroke (in)	0.500
Cylinder Bore (in)	0.86
Clamping Force @ 5Bar[72Psi] (lbf.)	34
Mount	Block: Side flange, tapped hole, standard
Air Port size	M5
Replacement Seal Kit	952292
Foot Mount Kit	952260
Tapped Hole Mount Kit	952261
Standard Mount Kit	952262
Swing Direction	LH
Air Consumption (per double stroke at 7 psi) (in³)	0.004
Stroke during rotation (in)	0.00
Vertical clamp stroke (in)	0.50
Weight (lb)	0.68
Product Series Description	Swing Clamp
Product Function	Clamping
Product Family	Light-Duty Pneumatic Clamping
Product Group	pneumatic swing clamps
