Brand: Dorian

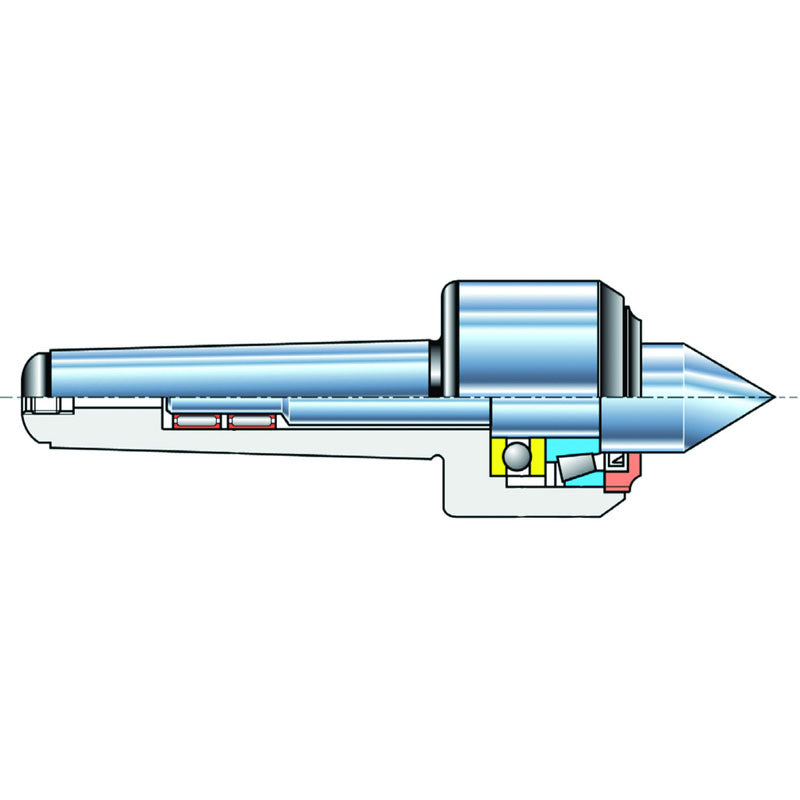

Dorian GG3548209 PLC-HDA-S60-MT5 HD - Live Center
SKU: FTS-GG3548209
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 23153000 PLC-HDA-S60-MT5 HD Live CenterFull Description
| Type | Live Center | Accuracy | 0.00015" |
| Taper Type | Morse Taper | Weight | 7.70 lbs |
| Head Diameter | 3.15" | Model No | PLC-HDA-S60-MT5 |
| Maximum RPM | 2,800 | Head Length | 2.32" |
| Mount | 5 MT | Point Length | 1.85" |
| Point Diameter | 1.50" | Style | Precision Taper Bearing |
| Shank Diameter | 5 MT | Maximum Workpiece Weight | 4,400 lbs |
| Thrust Load | 2,460 lbs |
