Brand: HALDER

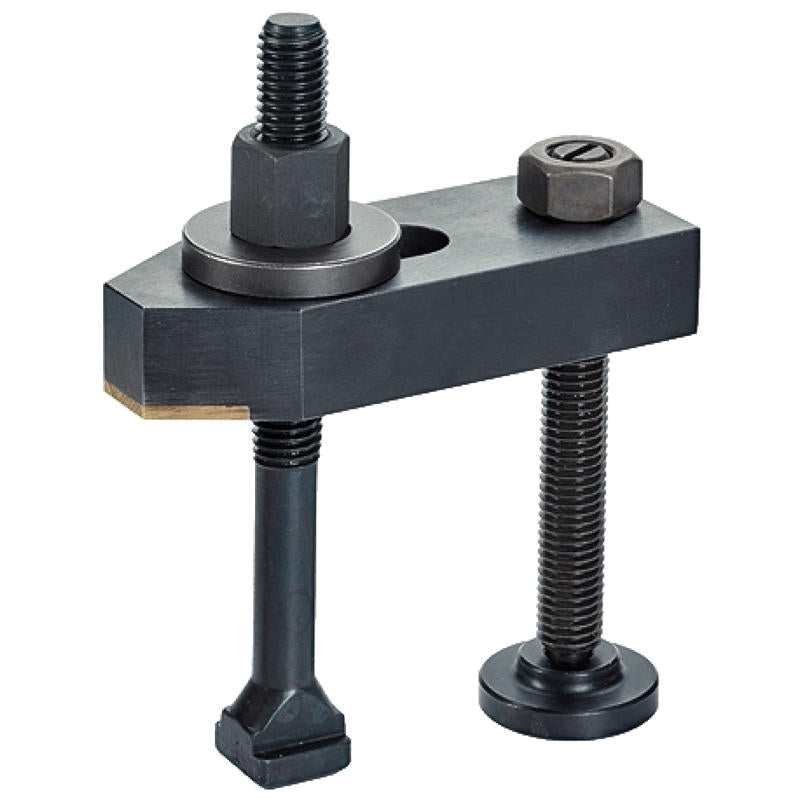

PLAIN CLAMPS - 23190.0048
SKU: EH-23190.0048
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Clamps, with soft face, similar to DIN 6314/with adjusting screw and clamping bolt | b1=18 mm / a1=25 mm / l3=160 mm | 23190.0048Halder 23190.0048 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
The brass plate protects the workpiece from damage. The combination of nut DIN 6330 B (EH 23070.)/conical seat DIN 6319 G (EH 23050.) on the clamping bolt and thrust pad DIN 6311 (EH 22560. removable) on the adjusting screw compensates for the lack of parallelity. The clamp can be used either way (soft or hard clamping surface).
Material
Soft face
- Brass, brazed
Clamp
- Heat-treated steel, blackened
