Brand: HALDER

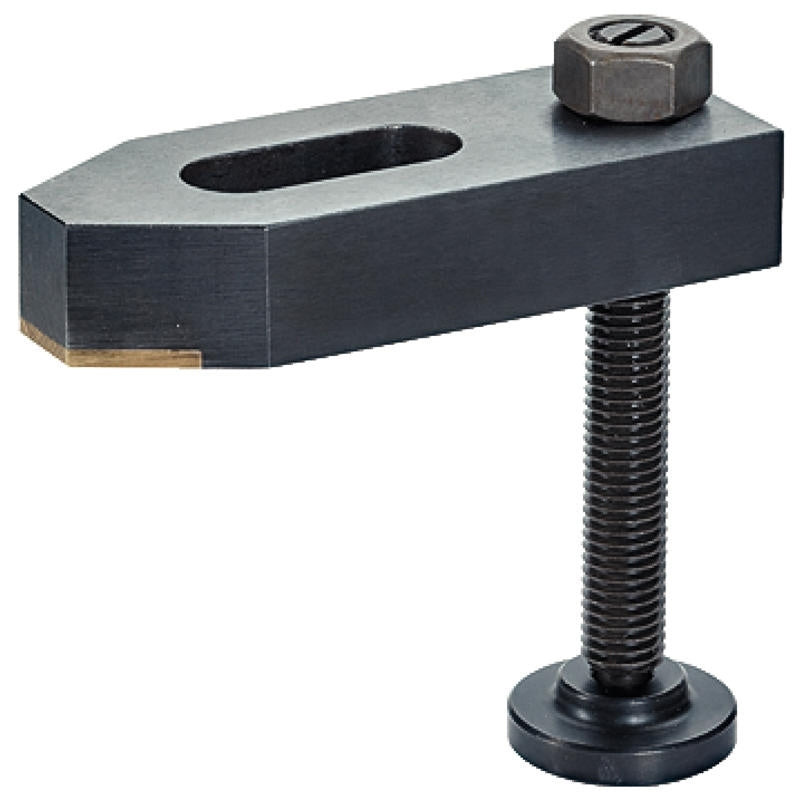

PLAIN CLAMPS - 23190.0021
SKU: EH-23190.0021
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Clamps, with soft face, similar to DIN 6314/only with adjusting screw | b1=11 mm / a1=15 mm | 23190.0021Halder 23190.0021 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
The brass plate protects the workpiece from damage. The combination of nut DIN 6330 B (EH 23070.)/conical seat DIN 6319 G (EH 23050.) on the clamping bolt and thrust pad DIN 6311 (EH 22560. removable) on the adjusting screw compensates for the lack of parallelity. The clamp can be used either way (soft or hard clamping surface).
Material
Soft face
- Brass, brazed
Clamp
- Heat-treated steel, blackened
