Brand: Iscar

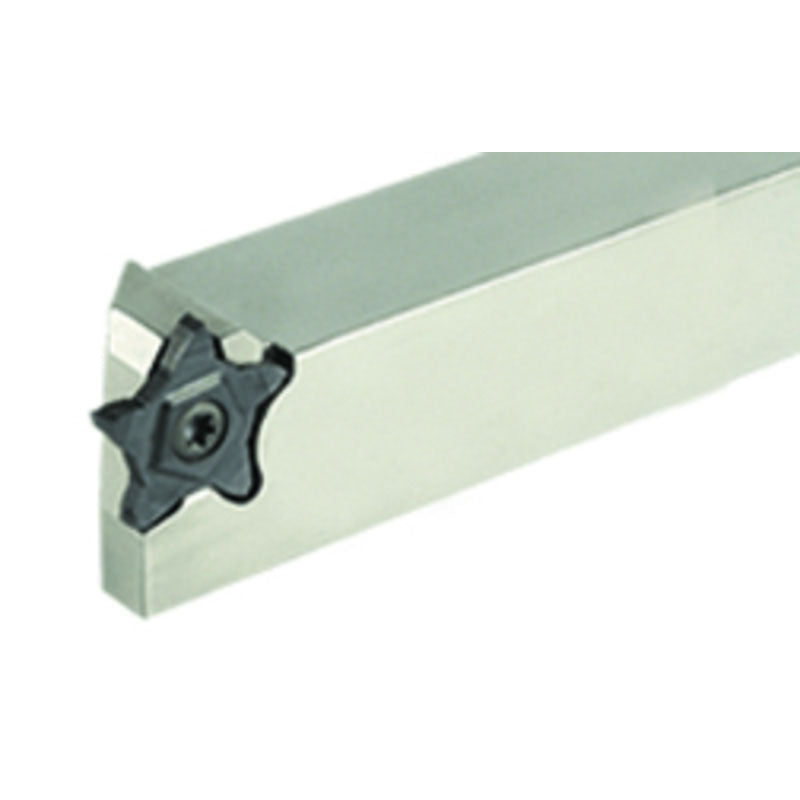

Iscar EH2301626 PCHL 12.7-24
SKU: FTS-EH2301626
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 2301626 PCHL 12.7-24Full Description
| Shank Height (H) | 1/2" | Cutting Position | External |
| Shank Width (B) | 1/2" | Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Width Minimum (CWN) | 0.02" | Shank Standard | Square |
| Cutting Width Maximum (CWX) | 1/8" | Body Material | Steel |
| Overall Length (OAL) | 5" | Tool Type | Parting & Grooving Tools |
| Head Length (LH) | 0.8" | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.256" | Measurement Type | Inch |
Family Description
Grooving, parting and recessing holders carrying inserts with 5 cutting edges.
WF=f1+f2 (according to insert width (CW) being used)
