Brand: Iscar

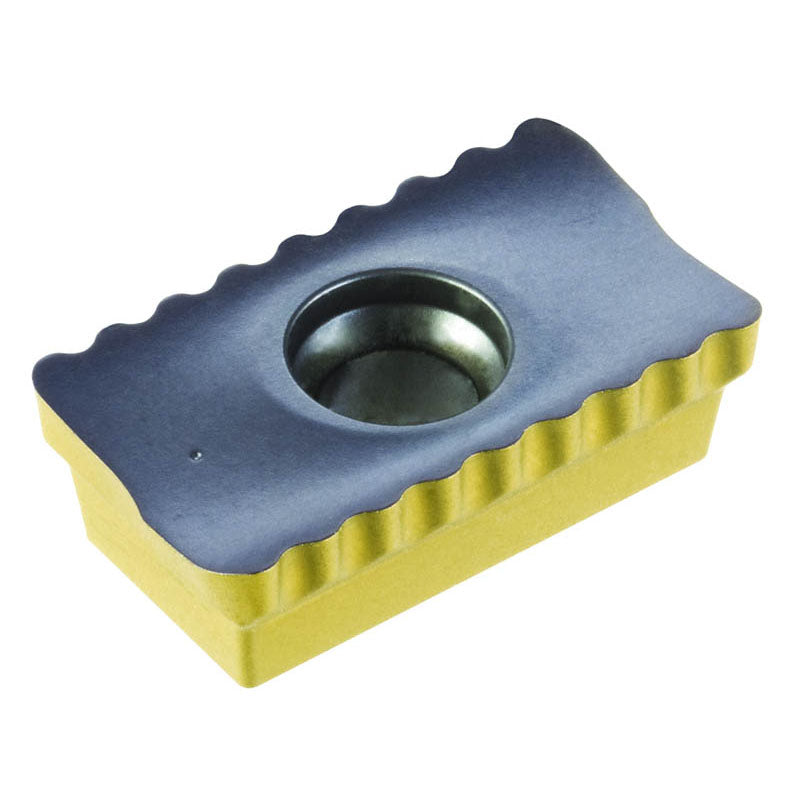

Iscar EH5607696 P290 ACKT 1806PDR-FWE IC380
SKU: FTS-EH5607696
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5607696 P290 ACKT 1806PDR-FWE IC380Full Description
| Applicable Material | | Hard Materials | Hi Temp Alloys | | Shape | 85° Parallelogram |
| Application | | Facing | Milling Inserts | Profiling | Rampdown | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0047 "/tooth |
| Cutting Edge Length (L) | 0.728" | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.728" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.709" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Width (W1) | 0.421" | Cutting Edge Effective Length (LE) | 0.709" |
| Insert Thickness (S) | 0.236" | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC380 |
Family Description
Single-sided rectangular inserts with 2 serrated cutting edges
