Brand: Iscar

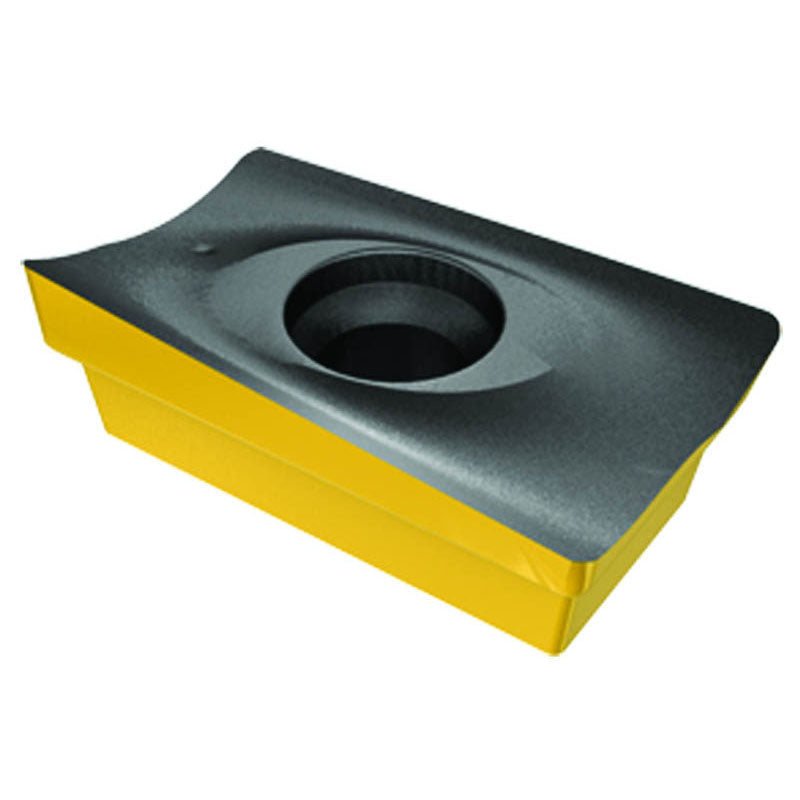

Iscar EH5606944 P290 ACCT 1806PDR-HL IC830
SKU: FTS-EH5606944
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606944 P290 ACCT 1806PDR-HL IC830Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 85° Parallelogram |
| Application | | Facing | Milling Inserts | Profiling | Rampdown | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0047 "/tooth |
| Cutting Edge Length (L) | 0.764" | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.764" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.709" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Width (W1) | 0.423" | Cutting Edge Effective Length (LE) | 0.709" |
| Insert Thickness (S) | 0.256" | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Family Description
Single-sided rectangular inserts with two .472 and .708" straight cutting edges.
HL - For finishing applications (ae max=.040") HL-P - Polished rake, used for aluminum TL- Reinforced straight cutting edges, designed for rough and semi-finishmilling
