Brand: Iscar

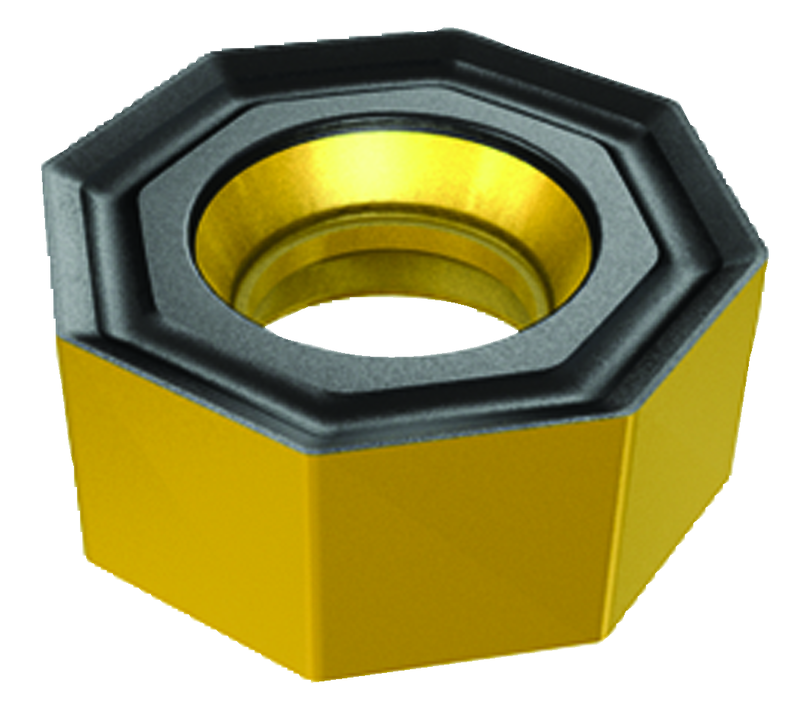

Iscar EH5606598 ONMU 080608-TN-MM IC330
SKU: FTS-EH5606598
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606598 ONMU 080608-TN-MM IC330Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 135° Octagon |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Corner Radius (RE) | 0.0315" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.236" | Minimum Feed per Tooth (fz(min)) | 0.0079 "/tooth |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC330 |
Family Description
16MILL, octagonal milling inserts with 16 cutting edges. Used for machining steel.
For FEEDMILL tools, see the feed conditions on the FF NM tools.
