Brand: Iscar

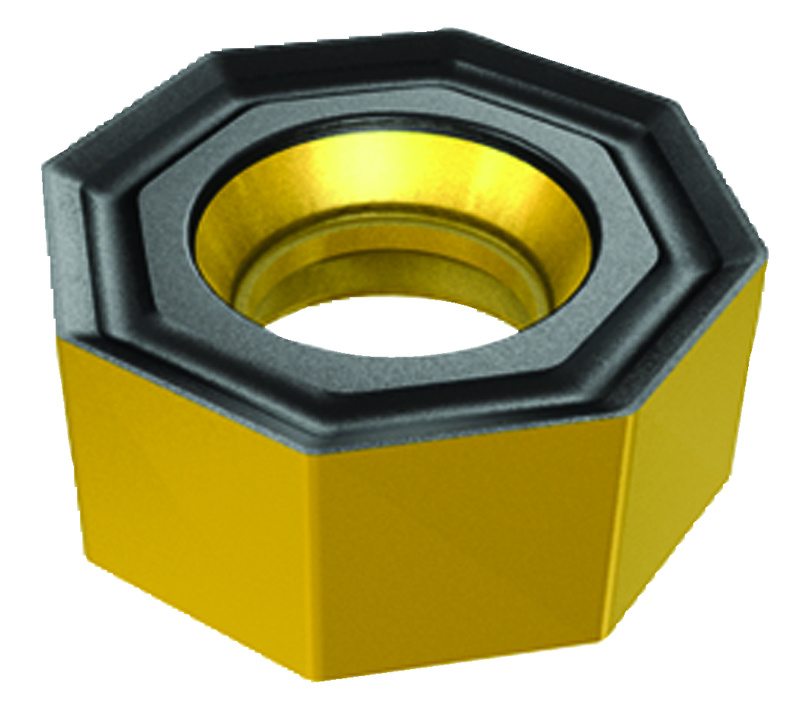

Iscar EH5606601 ONMU 080608-TN IC810
SKU: FTS-EH5606601
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5606601 ONMU 080608-TN IC810Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 135° Octagon |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0118 "/tooth |
| Corner Radius (RE) | 0.0315" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217" | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.236" | Minimum Feed per Tooth (fz(min)) | 0.0079 "/tooth |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | AlTiCrN+TiN | Body Material | Carbide |
| Grade | IC810 |
Family Description
Double-sided octagonal face milling inserts used on cast iron. HL - For rough applications and inhomogeneous surfaces.
For FEEDMILL tools, see the feed conditions for the FF NM tools.
