Brand: Northwestern Tools

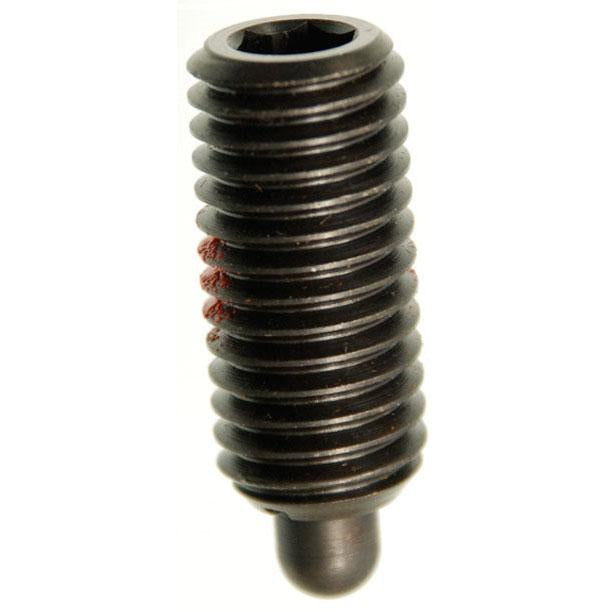

NORTHWESTERN TOOLS 33044H Hex Drive "Short" Stainless Steel Spring Plungers - Net lbs Per 100 - 1/2
SKU: NW-33044H
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33044H Hex Drive "Short" Stainless Steel Spring Plungers - Net lbs Per 100 - 1/2Northwestern Part Number: 33044H
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33044H Hex Drive "Short" Stainless Steel Spring Plungers - Net lbs Per 100 - 1/2
Hex Drive "Short" Stainless Steel Spring Plungers - Net lbs Per 100 - 1/2
Northwestern Part Number: 33044H
Carr Lane equivalent: N/A
| Product Information All stainless parts are 303 material. Delrin® noses prevent marring of aluminum, brass or other soft materials. Hex Drive Plungers use a positive drive for insertion and removal. Plungers may be ordered with or without the locking element. Plungers without locking element are the same price, but are considered "specials" and cannot be returned. We recommend using without the locking element for applications in aluminum. The locking element holds the plunger body securely in place witout the need for lock nuts or other devices. We recommend a 90° countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. End pressures are given in pounds. Full pressures are the force pounds needed to move the nose to the distance show in "C" column. To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end. |
| Hex Drive Short Extended Travel Steel Spring Plungers | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Without Locking Ele. | End Press. - Lbs. Start | End Press. - Lbs. Full | A | B | C | D | Hex Dia. E | Net lbs Per 100 | |
| Steel Body - Heat Treated Black Oxide Steel Nose | ||||||||||
| 33144H | 33144HP | 0.5 | 1.25 | 6-32 | 7/16 | .062 | .046 | 3/64 | 1/2 | |
| 33145H | 33145HP | 1.0 | 3.25 | 8-32 | 1/2 | .093 | .070 | 5/64 | 1/2 | |
| 33146H | 33146HP | 1.0 | 3.25 | 8-36 | 1/2 | .093 | .070 | 5/64 | 1/2 | |
| 33147H | 33147HP | 1.25 | 4.25 | 10-32 | 9/16 | .125 | .093 | 3/32 | 1/2 | |
| 33148H | 33148HP | 2.0 | 7.0 | 1/4-20 | 5/8 | .187 | .119 | 1/8 | 1/2 | |
| 33149H | 33149HP | 2.0 | 9.0 | 5/16-18 | 23/32 | .187 | .135 | 5/32 | 1 | |
| 33150H | 33150HP | 3.0 | 12.5 | 3/8-16 | 29/32 | .187 | .186 | 3/16 | 2 | |
| 33151H | 33151HP | 3.5 | 19.0 | 1/2-13 | 1-3/64 | .250 | .248 | 1/4 | 4 | |
| 33152H | 33152HP | 4.5 | 33.5 | 5/8-11 | 1-3/8 | .312 | .310 | 5/16 | 8 | Steel Body - Brown Delrin® Nose |
| 33044H | 33044HP | 0.5 | 1.25 | 6-32 | 7/16 | .062 | .046 | 3/64 | 1/2 | |
| 33045H | 33045HP | 1.0 | 3.25 | 8-32 | 1/2 | .093 | .070 | 5/64 | 1/2 | |
| 33046H | 33046HP | 1.0 | 3.25 | 8-36 | 1/2 | .093 | .070 | 5/64 | 1/2 | |
| 33047H | 33047HP | 1.25 | 4.25 | 10-32 | 9/16 | .125 | .093 | 3/32 | 1/2 | |
| 33048H | 33048HP | 2.0 | 7.0 | 1/4-20 | 5/8 | .187 | .119 | 1/8 | 1/2 | |
| 33049H | 33049HP | 2.0 | 9.0 | 5/16-18 | 23/32 | .187 | .135 | 5/32 | 1 | |
| 33050H | 33050HP | 3.0 | 12.5 | 3/8-16 | 29/32 | .187 | .186 | 3/16 | 1-1/2 | |
| 33051H | 33051HP | 3.5 | 19.0 | 1/2-13 | 1-3/64 | .250 | .248 | 1/4 | 3-1/2 | |
| 33052H | 33052HP | 4.5 | 33.5 | 5/8-11 | 1-3/8 | .312 | .310 | 5/16 | 6-1/2 | |
**Please note, this item is nonrefundable.**
