Brand: Northwestern Tools

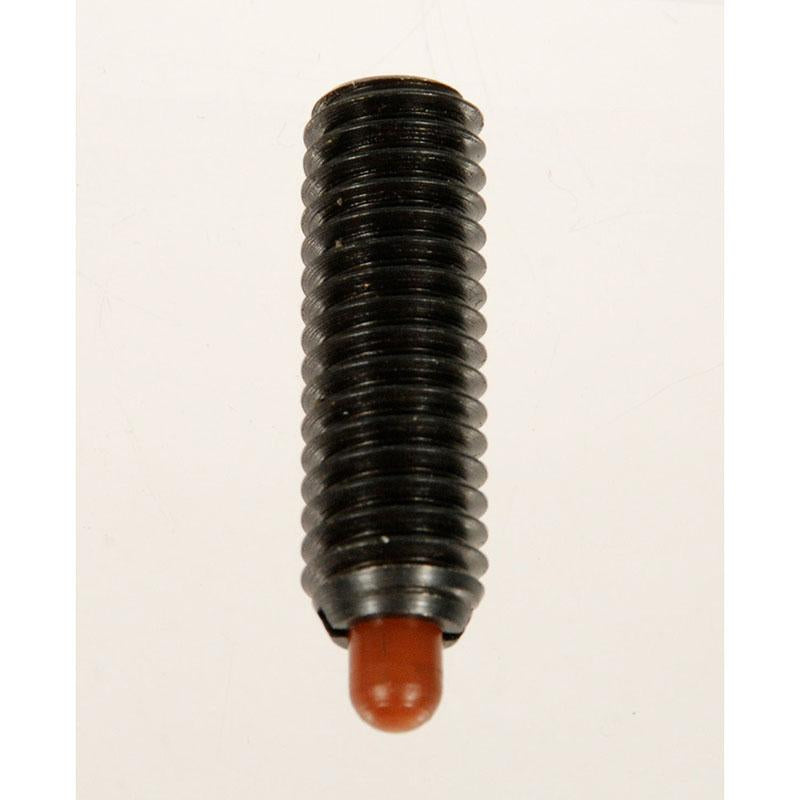

NORTHWESTERN TOOLS 33003P Standard Length Spring Plungers - Heavy Pressures - With Lock Element - Brown Nose, End Force: 2.9 Initial x 7.0 Half x 11.1 Full
SKU: NW-33003P
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
Short Description
NORTHWESTERN TOOLS 33003P Standard Length Spring Plungers - Heavy Pressures - With Lock Element - Brown Nose, End Force: 2.9 Initial x 7.0 Half x 11.1 FullNorthwestern Part Number: 33003P
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**
Full Description
NORTHWESTERN TOOLS 33003P Standard Length Spring Plungers - Heavy Pressures - With Lock Element - Brown Nose, End Force: 2.9 Initial x 7.0 Half x 11.1 Full
Standard Length Spring Plungers - Heavy Pressures - With Lock Element - Brown Nose, End Force: 2.9 Initial x 7.0 Half x 11.1 Full
Northwestern Part Number: 33003P
Carr Lane equivalent: N/A
Product Information Steel Spring Plungers with Heavy Spring PressuresBodies are 12L14 steel with a black oxide finish. Noses are black oxde steel, brown delrin, or phenolic. The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element. Steel noses are case hardened for wear resistance without brittleness. |
Steel Spring Plungers with Heavy Spring Pressures | |||||||||
---|---|---|---|---|---|---|---|---|---|
Heat Treated Black Oxide Steel Nose | |||||||||
With Lock Ele. Part No. |
Without Lock Ele. Part No. | End Pressures Lbs. Start | End Pressures Lbs. 1/2 |
End Pressures Lbs. Full |
A | B | C | D | Net Lbs. Per 100 |
33101 | 33101P | 1.5 | 3.0 | 4.5 | #6-32 | 17/32 | .062 | .046 | 1/2 |
33102 | 33102P | 1.0 | 1.3 | 1.6 | #6-32 | 3/8 | .062 | .046 | 1/2 |
33103 | 33103P | 2.7 | 5.0 | 7.3 | #8-32 | 5/8 | .093 | .070 | 1/2 |
33105 | 33105P | 2.9 | 7.0 | 11.1 | #10-32 | 3/4 | .125 | .093 | 1/2 |
33107 | 33107P | 3.0 | 8.0 | 13.0 | 1/4-20 | 1" | .187 | .119 | 1 |
33108 | 33108P | 3.0 | 8.0 | 13.0 | 1/4-28 | 1" | .187 | .119 | 1 |
33109 | 33109P | 2.0 | 5.5 | 9.0 | 1/4-20 | 3/4 | .125 | .119 | 1 |
33111 | 33111P | 3.0 | 9.0 | 15.0 | 5/16-18 | 1" | .187 | .135 | 2 |
33113 | 33113P | 5.5 | 10.0 | 14.5 | 3/8-16 | 1-1/8 | .187 | .186 | 2 |
33115 | 33115P | 6.6 | 12.0 | 17.4 | 1/2-13 | 1-1/4 | .250 | .248 | 5 |
33117 | 33117P | 10.5 | 18.0 | 25.5 | 5/8-11 | 1-1/2 | .312 | .310 | 8 |
33119 | 33119P | 6.7 | 22.0 | 37.3 | 3/4-10 | 1-3/4 | .312 | .374 | 14 |
33120 | 33120P | 16.0 | 42.0 | 68.0 | 1"-8 | 2-13/32 | .500 | .499 | 34 |
Brown Delrin Nose | |||||||||
33001 | 33001P | 2.7 | 5.0 | 7.3 | #8-32 | 5/8 | .093 | .070 | 1/2 |
33003 | 33003P | 2.9 | 7.0 | 11.1 | #10-32 | 3/4 | .125 | .093 | 1/2 |
33005 | 33005P | 3.0 | 8.0 | 13.0 | 1/4-20 | 1" | .187 | .119 | 1 |
33005A | 33005AP | 3.0 | 8.0 | 13.0 | 1/4-28 | 1" | .187 | .119 | 1 |
33007 | 33007P | 3.0 | 9.0 | 15.0 | 5/16-18 | 1" | .187 | .135 | 1-1/2 |
33009 | 33009P | 5.5 | 10.0 | 14.5 | 3/8-16 | 1-1/8 | .187 | .186 | 2 |
33011 | 33011P | 6.6 | 12.0 | 17.4 | 1/2-13 | 1-1/4 | .250 | .248 | 4 |
33013 | 33013P | 10.5 | 18.0 | 25.5 | 5/8-11 | 1-1/2 | .312 | .310 | 7 |
Phenolic Nose | |||||||||
33021 | 33021P | 2.7 | 5.0 | 7.3 | #8-32 | 5/8 | .093 | .070 | 1/2 |
33023 | 33023P | 2.9 | 7.0 | 11.1 | #10-32 | 3/4 | .125 | .093 | 1/2 |
33025 | 33025P | 3.0 | 8.0 | 13.0 | 1/4-20 | 1" | .187 | .119 | 1 |
33025A | 33025AP | 3.0 | 8.0 | 13.0 | 1/4-28 | 1" | .187 | .119 | 1 |
33027 | 33027P | 3.0 | 9.0 | 15.0 | 5/16-18 | 1" | .187 | .135 | 1-1/2 |
33029 | 33029P | 5.5 | 10.0 | 14.5 | 3/8-16 | 1-1/8 | .187 | .186 | 2 |
33031 | 33031P | 6.6 | 12.0 | 17.4 | 1/2-13 | 1-1/4 | .250 | .248 | 4 |
33033 | 33033P | 16.0 | 42.0 | 68.0 | 1"-8 | 2-13/32 | .500 | .499 | 34 |
All parts conform to TCMAI Standards
**Please note, this item is nonrefundable.**
