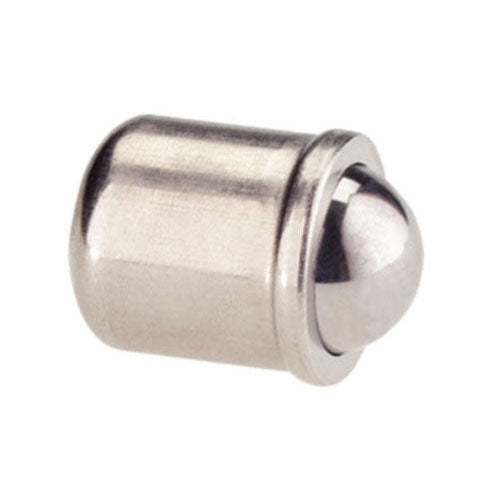

NORTHWESTERN TOOLS 10482SS Smooth - Collared Plunger - All Stainless - Body Length - 5 mm
SKU: NW-10482SS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $200 minimum for all Northwestern Tools product orders*
*This product can only be purchased with a shipping account. We apologize for the inconvenience.*
Short Description
NORTHWESTERN TOOLS 10482SS Smooth - Collared Plunger - All Stainless - Body Length - 5 mmNorthwestern Part Number: 10482SS
Carr Lane equivalent: N/A
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
NORTHWESTERN TOOLS 10482SS Smooth - Collared Plunger - All Stainless - Body Length - 5 mm
Smooth - Collared Plunger - All Stainless - Body Length - 5 mm
Northwestern Part Number: 10482SS
Carr Lane equivalent: N/A
| Product Information Assembly - A tolerance of H7 is recommended for the locating hole of d1. Special types on request. Spring range and forces are precisely tested. Load pressures are measured in newtons. Unspecified measurements are in mm. |
| Smooth - Collared | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | d1 +0.1 |
d2 | d3 | l1 | l2 | Stroke s |
Spring Load F1 | Spring Load F2 |
min. °C |
max. °C |
Location Hole |
Grams |
| Body and Ball From Stainless Steel | ||||||||||||
| 10480SS | 3 | 2.38 | 3.5 | 4.0 | 0.6 | 0.70 | 1.8 | 3.5 | - | 250 | 3 | 0.20 |
| 10481SS | 4 | 3.00 | 4.6 | 5.0 | 0.9 | 1.00 | 2.5 | 6.0 | - | 250 | 4 | 0.30 |
| 10482SS | 5 | 4.00 | 5.6 | 6.0 | 0.9 | 1.40 | 3.0 | 6.5 | - | 250 | 5 | 0.60 |
| 10483SS | 6 | 5.00 | 6.5 | 7.0 | 1.0 | 1.80 | 5.5 | 11.5 | - | 250 | 6 | 1.00 |
| 10484SS | 8 | 6.50 | 8.5 | 9.0 | 1.1 | 2.40 | 7.0 | 12.5 | - | 250 | 8 | 2.10 |
| 10485SS | 10 | 8.50 | 11.0 | 13.0 | 1.5 | 3.30 | 8.5 | 18.5 | - | 250 | 10 | 4.40 |
| 10486SS | 12 | 10.00 | 13.0 | 16.0 | 2.3 | 4.00 | 12.0 | 26.5 | - | 250 | 12 | 7.30 |
| Body From Thermoplastic, Ball From Stainless Steel | ||||||||||||
| 10480D | 3 | 2.00 | 3.6 | 4.0 | 0.6 | 0.55 | 1.7 | 3.5 | -30 | 50 | 3 | 0.09 |
| 10481D | 4 | 3.00 | 4.6 | 5.0 | 1.0 | 0.80 | 3.0 | 6.5 | -30 | 50 | 4 | 0.20 |
| 10482D | 5 | 4.00 | 5.6 | 6.0 | 1.0 | 1.00 | 6.0 | 9.4 | -30 | 50 | 5 | 0.40 |
| 10483D | 6 | 5.00 | 6.5 | 7.0 | 1.0 | 1.60 | 6.2 | 12.6 | -30 | 50 | 6 | 0.70 |
| 10484D | 8 | 6.50 | 8.5 | 9.0 | 1.0 | 1.90 | 10.0 | 20.4 | -30 | 50 | 8 | 1.50 |
| 10485D | 10 | 8.00 | 11.0 | 13.5 | 1.5 | 2.40 | 11.9 | 22.3 | -30 | 50 | 10 | 3.20 |
| 10486D | 12 | 10.00 | 13.0 | 16.0 | 1.5 | 3.30 | 14.0 | 25.0 | -30 | 50 | 10 | 5.80 |
| Body and Ball From Thermoplastic | ||||||||||||
| 10481D-DB | 4 | 3.00 | 4.6 | 5.0 | 1.0 | 0.80 | 3.0 | 6.5 | -30 | 50 | 4 | 0.10 |
| 10482D-DB | 5 | 4.00 | 5.6 | 6.0 | 1.0 | 1.00 | 6.0 | 9.4 | -30 | 50 | 5 | 0.20 |
| 10483D-DB | 6 | 5.00 | 6.5 | 7.0 | 1.0 | 1.60 | 6.2 | 12.6 | -30 | 50 | 6 | 0.30 |
| 10484D-DB | 8 | 6.50 | 8.5 | 9.0 | 1.0 | 1.90 | 10.0 | 20.4 | -30 | 50 | 8 | 0.60 |
| 10485D-DB | 10 | 8.00 | 11.0 | 13.5 | 1.5 | 2.40 | 11.9 | 22.3 | -30 | 50 | 10 | 1.50 |
| 10486D-DB | 12 | 10.00 | 13.0 | 16.0 | 1.5 | 3.30 | 14.0 | 25.0 | -30 | 50 | 12 | 2.50 |
