Brand: Northwestern Tools

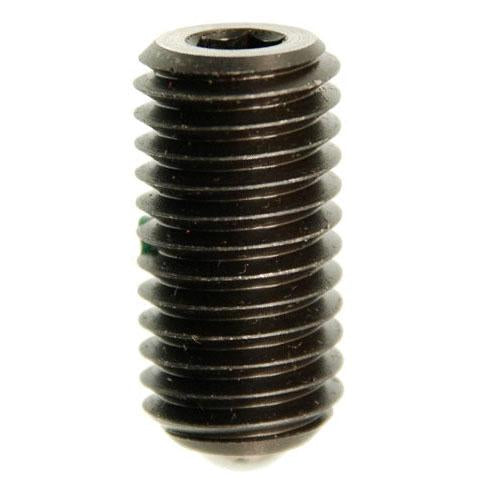

NORTHWESTERN TOOLS 10102H Hex Drive Stainless Steel Ball Plungers - Stainless Steel Ball - Color Code - Yellow

SKU: NW-10102H
MPN: 10102H

$8.22
Unit price per
Save $4.16

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $200 minimum for all Northwestern Tools product orders*

Short Description

NORTHWESTERN TOOLS 10102H Hex Drive Stainless Steel Ball Plungers - Stainless Steel Ball - Color Code - Yellow
Northwestern Part Number: 10102H
Carr Lane equivalent: N/A

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**

Full Description

NORTHWESTERN TOOLS 10102H Hex Drive Stainless Steel Ball Plungers - Stainless Steel Ball - Color Code - Yellow

Hex Drive Stainless Steel Ball Plungers - Stainless Steel Ball - Color Code - Yellow

Northwestern Part Number: 10102H

Carr Lane equivalent: N/A

Product Information

Balls are 440 stainless.

Plungers may be ordered with or without the locking element. Plungers without the element are the same price, but are considered "specials" and cannot be returned. We recommend using without the locking element for applications in aluminum.

To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end.

The nylon locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element.

End pressures are given in pounds. Full pressures are the force pounds needed to move the nose the distance shown in "C" column.

All stainless bodies are made of 303 material.

Hex Drive Steel Ball Plungers
Stainless Steel Ball
Part No.	Without Lock Ele.	**Color Code	End Press.-Lbs. Newtons Start	End Press.-Lbs. Newtons Full	A	B	C	Ball Dia. D	Hex Dia. E	Net lbs Per 100
10101H	10101HP	Plain	0.5	1.5	10-32	9/16	.025	.093	5/64	1/2
10102H	10102HP	Black	1.5	3.0	10-32	9/16	.025	.093	5/64	1/2
10103H	10103HP	Yellow	2.0	5.0	10-32	9/16	.025	.093	5/64	1/2
10104H	10104HP	Plain	2.0	4.0	1/4-20	43/64	.035	.125	5/64	3/4
10105H	10105HP	Black	3.0	7.0	1/4-20	43/64	.035	.125	5/64	3/4
10106H	10106HP	Yellow	4.0	12.0	1/4-20	43/64	.035	.125	5/64	3/4
10107H	10107HP	Plain	2.0	4.5	5/16-18	23/32	.040	.156	3/32	1
10108H	10108HP	Black	4.0	9.0	5/16-18	23/32	.040	.156	3/32	1
10109H	10109HP	Yellow	6.0	17.0	5/16-18	23/32	.040	.156	3/32	1
10110H	10110HP	Plain	2.5	5.0	3/8-16	13/16	.048	.187	5/32	1-1/2
10111H	10111HP	Black	5.0	10.0	3/8-16	13/16	.048	.187	5/32	1-1/2
10112H	10112HP	Yellow	6.0	21.0	3/8-16	13/16	.048	.187	5/32	1-1/2
10113H	10113HP	Plain	3.0	6.0	1/2-13	1-3/64	.072	.281	7/32	4
10114H	10114HP	Black	6.0	12.0	1/2-13	1-3/64	.072	.281	7/32	4
10115H	10115HP	Yellow	6.0	30.0	1/2-13	1-3/64	.072	.281	7/32	4
10116H	10116HP	Plain	4.5	9.0	5/8-11	1-15/64	.096	.375	1/4	6-1/2
10117H	10117HP	Black	9.0	18.0	5/8-11	1-15/64	.096	.375	1/4	6-1/2
10118H	10118HP	Yellow	7.0	50.0	5/8-11	1-15/64	.096	.375	1/4	6-1/2

** Plain - Light Pressures

Black - Medium Pressures

Yellow - Heavy Pressures
