Brand: Northwestern Tools

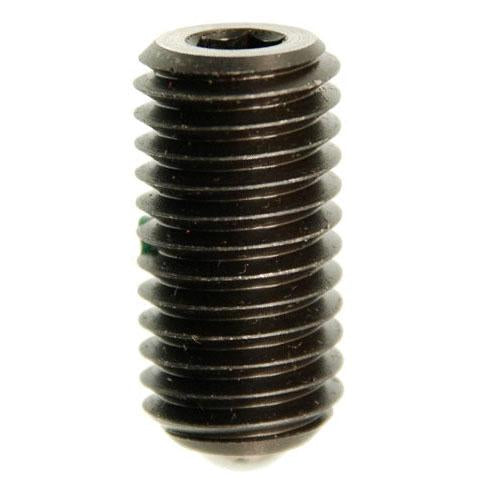

NORTHWESTERN TOOLS 10008HP Hex Drive Steel Ball Plungers - Stainless Steel Ball - Color Code - Black

SKU: NW-10008HP
MPN: 10008HP

$5.74
Unit price per
Save $3.08

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $75 minimum for all Northwestern Tools product orders*

Short Description

NORTHWESTERN TOOLS 10008HP Hex Drive Steel Ball Plungers - Stainless Steel Ball - Color Code - Black
Northwestern Part Number: 10008HP
Carr Lane equivalent: N/A

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
**Please note, this item is nonrefundable.**

Full Description

NORTHWESTERN TOOLS 10008HP Hex Drive Steel Ball Plungers - Stainless Steel Ball - Color Code - Black

Hex Drive Steel Ball Plungers - Stainless Steel Ball - Color Code - Black

Northwestern Part Number: 10008HP

Carr Lane equivalent: N/A

Product Information

Steel bodies are made of 12L14 material with a black oxide finish.

Balls are 440 stainless.

The locking element holds the plunger body securely in place without the need for lock nuts or other devices. We recommend a 90 degree countersink 1/32" larger than the major diameter of the mating thread to prevent damaging the element.

Plungers may be ordered with or without the locking element. Plungers without the element are the same price, but are considered "specials" and cannot be returned. We recommend using without the locking element for applications in aluminum.

To prevent possible spring damage, use of a Northwestern Wrench is recommended when installing from plunger end.

End pressures are given in pounds. Full pressures are the force pounds needed to move the nose the distance shown in "C" column.

NORTHWESTERN TOOLS 10008HP Hex Drive Steel Ball Plungers - Stainless Steel Ball - Color Code - Black

Hex Drive Steel Ball Plungers
Stainless Steel Ball
Part No.	Without Lock Ele.	**Color Code	End Press.-Lbs. Start	End Press.-Lbs. Full	A	B	C	Ball Dia. D	Hex Dia. E	Net lbs Per 100
10005H	10005HP	Silver	0.5	1.5	10-32	9/16	.025	.093	5/64	1/2
10006H	10006HP	Black	1.5	3.0	10-32	9/16	.025	.093	5/64	1/2
10007H	10007HP	Gold	2.0	5.0	10-32	9/16	.025	.093	5/64	1/2
10008H	10008HP	Silver	2.0	4.0	1/4-20	43/64	.035	.125	5/64	3/4
10009H	10009HP	Black	3.0	7.0	1/4-20	43/64	.035	.125	5/64	3/4
10010H	10010HP	Gold	4.0	12.0	1/4-20	43/64	.035	.125	5/64	3/4
10011H	10011HP	Silver	2.0	4.5	5/16-18	23/32	.040	.156	3/32	1
10012H	10012HP	Black	4.0	9.0	5/16-18	23/32	.040	.156	3/32	1
10013H	10013HP	Gold	6.0	17.0	5/16-18	23/32	.040	.156	3/32	1
10014H	10014HP	Silver	2.5	5.0	3/8-16	13/16	.048	.187	5/32	1-1/2
10015H	10015HP	Black	5.0	10.0	3/8-16	13/16	.048	.187	5/32	1-1/2
10016H	10016HP	Gold	6.0	21.0	3/8-16	13/16	.048	.187	5/32	1-1/2
10017H	10017HP	Silver	3.0	6.0	1/2-13	1-3/64	.072	.281	7/32	4
10018H	10018HP	Black	6.0	12.0	1/2-13	1-3/64	.072	.281	7/32	4
10019H	10019HP	Gold	6.0	30.0	1/2-13	1-3/64	.072	.281	7/32	4
10020H	10020HP	Silver	4.5	9.0	5/8-11	1-15/64	.096	.375	1/4	6-1/2
10021H	10021HP	Black	9.0	18.0	5/8-11	1-15/64	.096	.375	1/4	6-1/2
10022H	10022HP	Gold	7.0	50.0	5/8-11	1-15/64	.096	.375	1/4	6-1/2

** Silver - Light Pressures

Black - Medium Pressures

Gold - Heavy Pressures
