Brand: Quality Import

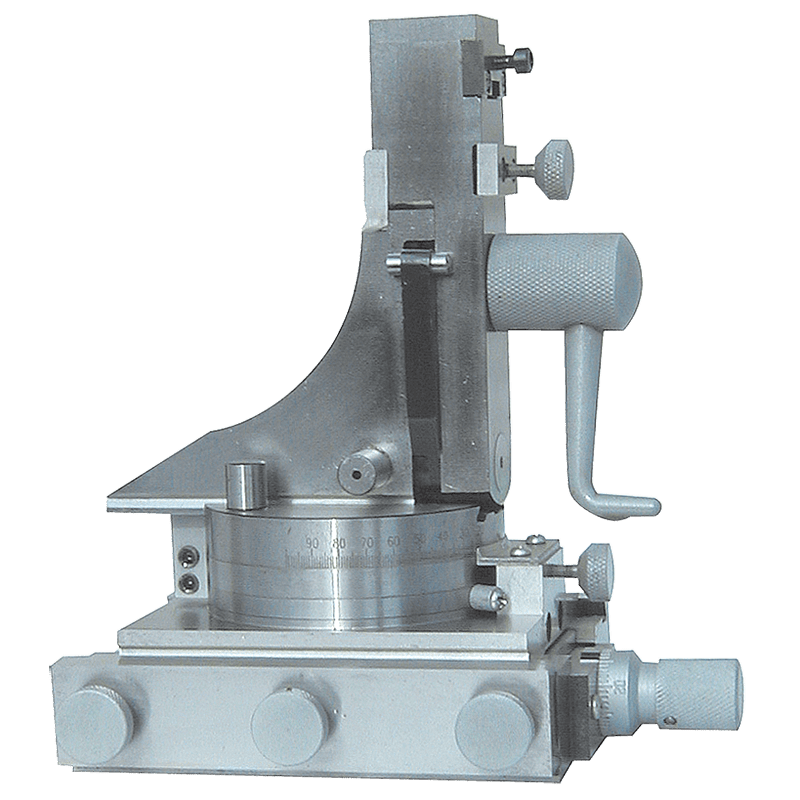

Quality Import NP55NRD4 #NRD4 - Universal Wheel Dresser
SKU: FTS-NP55NRD4
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Quality Import 287-6070 #NRD4 - Universal Wheel DresserFull Description
| Type | Universal Wheel Dresser | Max Wheel Size | 200 mm (8") |
| Shank Diameter | 3/8" | Measuring Quasi-pin Dia | 10mm (0.4") |
| Weight | 5 kg | Max Swing Distance of Diamond | ±20mm (±0.8") |
| Center Height | 6 2/5" | Max Translation of Feed | 20mm (0.8") |
| Indexing Div | 0 | Feed per Division of Handle Scale | .02mm |
| Maximum Swing Distance | ±0.8" | Convex Radii Range | 0 |
• The Universal Wheel Dresser works on surface grinder and universal tool grinder to dress grinding wheels into various cross sections of flat or curved shapes.
