Brand: INDUSTRIAL MAGNETICS

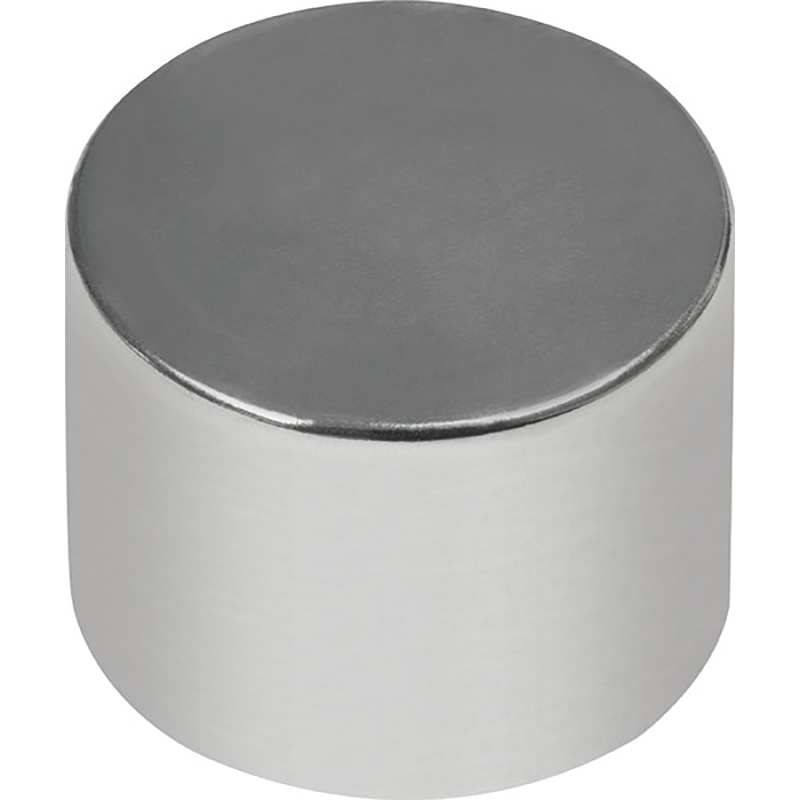

Industrial Magnetics MAG-MATE® Rare Earth Magnet Nickel Plated 42 NE2525NP42

SKU: IM-NE2525NP42
MPN: NE2525NP42

$2.07
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Industrial Magnetics MAG-MATE Rare Earth Magnet Nickel Plated 42 NE2525NP42. Rare Earth. High Energy - Raw Magnet Material. Due to their tremendously high energy level, Rare Earth magnets are ideal for miniaturized applications.

*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

Industrial Magnetics MAG-MATE® Rare Earth Magnet Nickel Plated 42 NE2525NP42

Rare Earth

High Energy - Raw Magnet Material

Due to their tremendously high energy level, Rare Earth magnets are ideal for miniaturized applications. They offer high resistance to demagnetization and are recommended for applications with temperature ranges under 180°F (82°C). Raw Rare Earth magnets have a dull metallic appearance and tend to be very brittle. They can be ground, but caution must be exercised not to crush the material. Be aware of possible fire from the dust particles produced from grinding or cutting Rare Earth magnet materials.

Raw magnet material is available in many different types, shapes, sizes and strengths. When selecting magnetic material to perform a given task, certain specifications need to be considered: dimensions, direction of the materials, magnetic orientation, tolerances, finish, strength, and the type of raw magnetic material desired, such as Rare Earth magnets, Ceramic magnets or even Flexible magnetic rubber. Mag-Mate raw magnet material meets Magnetic Materials Producers Association (MMPA) standards for physical quality and magnetic properties.

Literature Download: Rare Earth

Part No.	Thickness (in)	Width (in)	Length (in)	Weight (lbs)	MGOe	Maximum Pull(lbs.)
Rectangular Rare Earth Magnet Material
NE010510NP42	0.125	0.50	1.00	0.017	42	10.34
NEO 3/16 RECTNP	0.18	1.00	1.50	0.100	35	22.49
NE181510NP42	0.1875	1.00	1.50	0.100	42	28.17
NE2550200NP35	0.25	0.50	2.00	0.070	35	25.02
NE25100200NP35	0.25	1.00	2.00	0.140	35	30.06
NE342575NP35	0.34	0.25	0.75	0.018	35	10.21

Part No.	Thickness (in)	Width (in)	Length (in)	Weight (lbs)	MGOe	Maximum Pull (lbs)
Square Rare Earth Magnet Material
NE012525NP35	0.10	0.25	0.25	0.001	35	1.76
NE010505NP42	0.125	0.50	0.50	0.009	42	7.34
NE011010NP42	0.125	1.00	1.00	0.034	42	14.58
NE011515NP42	0.125	1.50	1.50	0.076	42	23.29
NE257575NP35	0.25	0.75	0.75	0.040	35	18.28
NE505050NP35	0.50	0.50	0.50	0.030	35	15.59
NE50100100NP35	0.50	1.00	1.00	0.030	35	45.37

Part No.	Diameter (in)	Length (in)	Weight (lbs)	MGOe	Maximum Pull (lbs)
Round Disc Rare Earth Magnet Material
NE1206NP35	0.120	0.060	0.0002	35	0.34
NE1225NP35	0.120	0.250	0.0002	35	0.66
NE1250NP35	0.120	0.500	0.0004	35	0.68
NE1806NP35	0.187	0.060	0.0004	35	0.60
NE2210NP35	0.220	0.100	0.001	35	1.25
NE2225NP35	0.220	0.250	0.003	35	2.24
NE2250NP35	0.220	0.500	0.007	35	2.52
NE2510NP35	0.250	0.100	0.001	35	1.47
NE2512NP35	0.250	0.125	0.002	35	1.92
NE2512NP42	0.250	0.125	0.002	42	2.30
NE2518NP35	0.250	0.187	0.002	35	2.50
NE2520NP35	0.250	0.200	0.003	35	2.56
NE2520NP42	0.250	0.200	0.003	42	3.07
NE2525NP35	0.250	0.250	0.003	35	2.79
NE2525NP42	0.250	0.250	0.003	42	3.35
NE2550NP35	0.250	0.500	0.007	35	3.23
NE2550NP42	0.250	0.500	0.007	42	3.87
NE3106NP35	0.310	0.060	0.006	35	1.30
NE3225NP35	0.320	0.250	0.006	35	4.43
NE3706NP35	0.375	0.060	0.002	35	1.68
NE3710NP35	0.375	0.100	0.003	35	2.59
NE3712NP35	0.375	0.125	0.004	35	3.68
NE3718NP35	0.375	0.187	0.006	35	4.83
NE3720NP35	0.375	0.200	0.006	35	5.02
NE3725NP35	0.375	0.250	0.007	35	5.72
NE3725NP42	0.375	0.250	0.007	42	5.72
NE3737NP35	0.375	0.375	0.011	35	6.63
NE3737NP42	0.375	0.375	0.011	42	7.96
NE3750NP35	0.375	0.500	0.015	35	7.08
NE3750NP42	0.375	0.500	0.015	42	8.50
NE3750NP52	0.375	0.500	0.015	52	10.5
NE5006NP35	0.500	0.060	0.003	35	2.45
NE5006NP52	0.500	0.060	0.003	52	3.80
NE5012NP35	0.500	0.125	0.007	35	5.37
NE5012NP42	0.500	0.125	0.007	42	6.08
NE5012NP52	0.500	0.125	0.007	52	7.90
NE5018NP35	0.500	0.1875	0.010	35	7.62
NE5018NP42	0.500	0.1875	0.010	42	9.14
NE5020NP35	0.500	0.200	0.010	35	7.91
NE5020NP42	0.500	0.200	0.010	42	9.49
NE5020NP52	0.500	0.200	0.010	52	11.70
NE5025NP35	0.500	0.250	0.013	35	9.07
NE5025NP42	0.500	0.250	0.013	42	10.88
NE5025NP52	0.500	0.250	0.013	52	13.44
NE5037NP35	0.500	0.375	0.020	35	11.19
NE5050NP35	0.500	0.500	0.026	35	12.17
NE5050NP42	0.500	0.500	0.026	42	14.66
NE5050NP52	0.500	0.500	0.026	52	18.00
NE7506NP35	0.750	0.060	0.020	35	3.91
NE7506NP42	0.750	0.0625	0.030	42	4.95
NE7512NP42	0.750	0.125
