Brand: FREER NAAMS

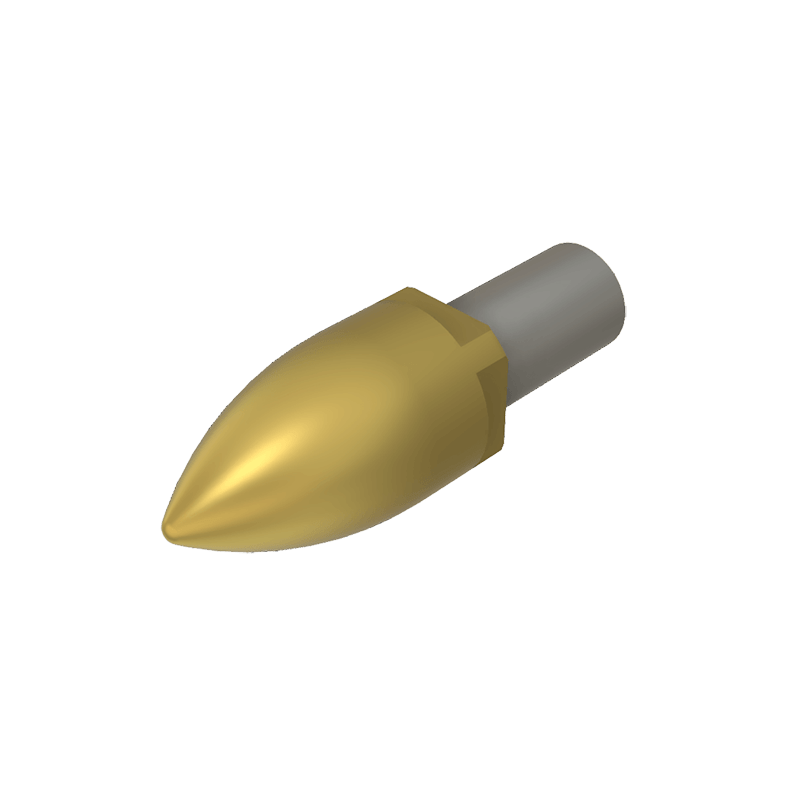

NAAMS Locating Pin APS256T ENGLISH
SKU: FN-APS256T
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
Achieve reliable positioning with the NAAMS APS256T locating pin, built to withstand rigorous manufacturing demands. This precision component measures 119.8mm in length and weighs just 0.32kg, making it ideal for compact tooling setups. Constructed from A2 steel and hardened to 58-62HRC, it resists wear and maintains dimensional accuracy through countless cycles. Upgrade to M2 coating or titanium nitride surface treatment for maximum longevity in high-friction applications—available by quote.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

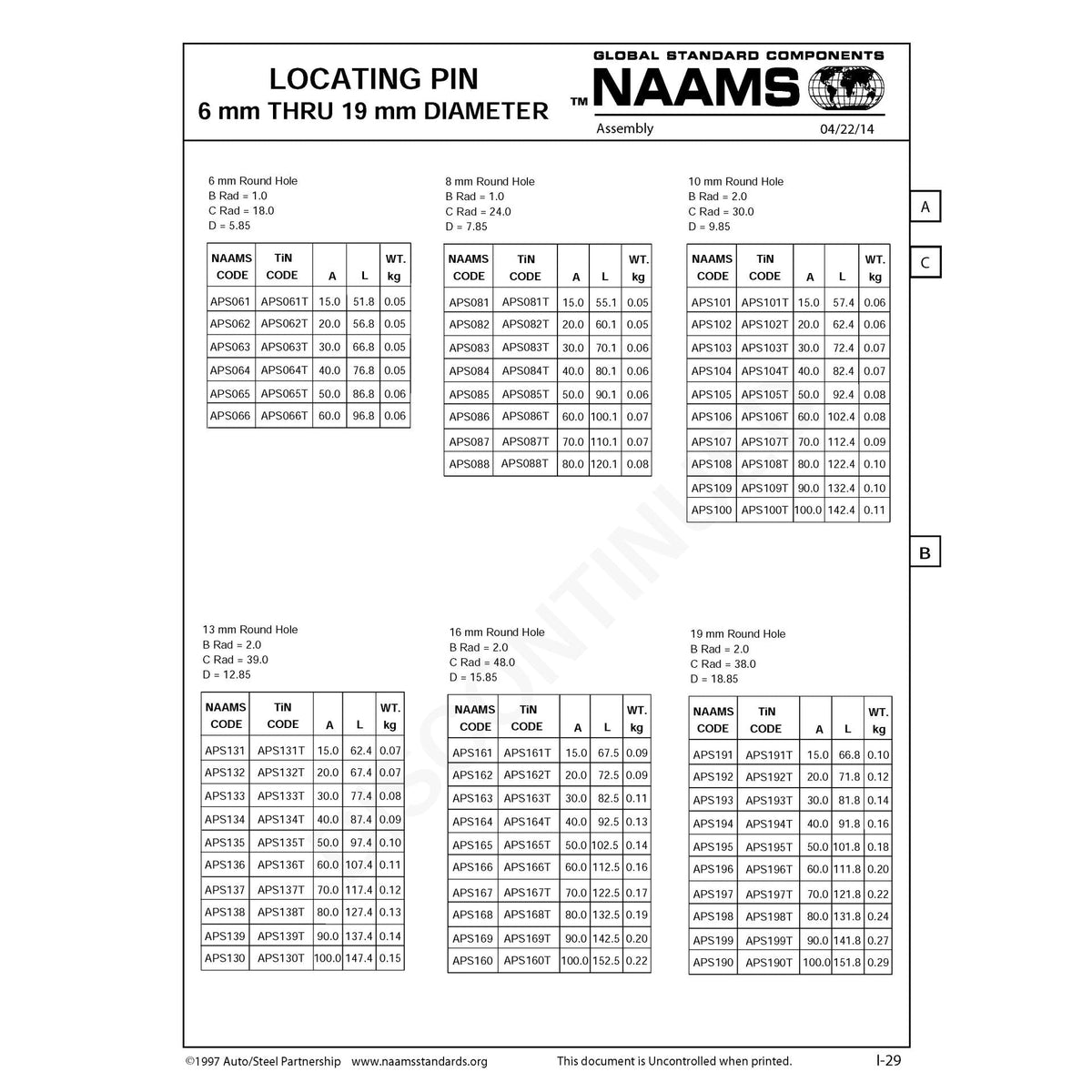

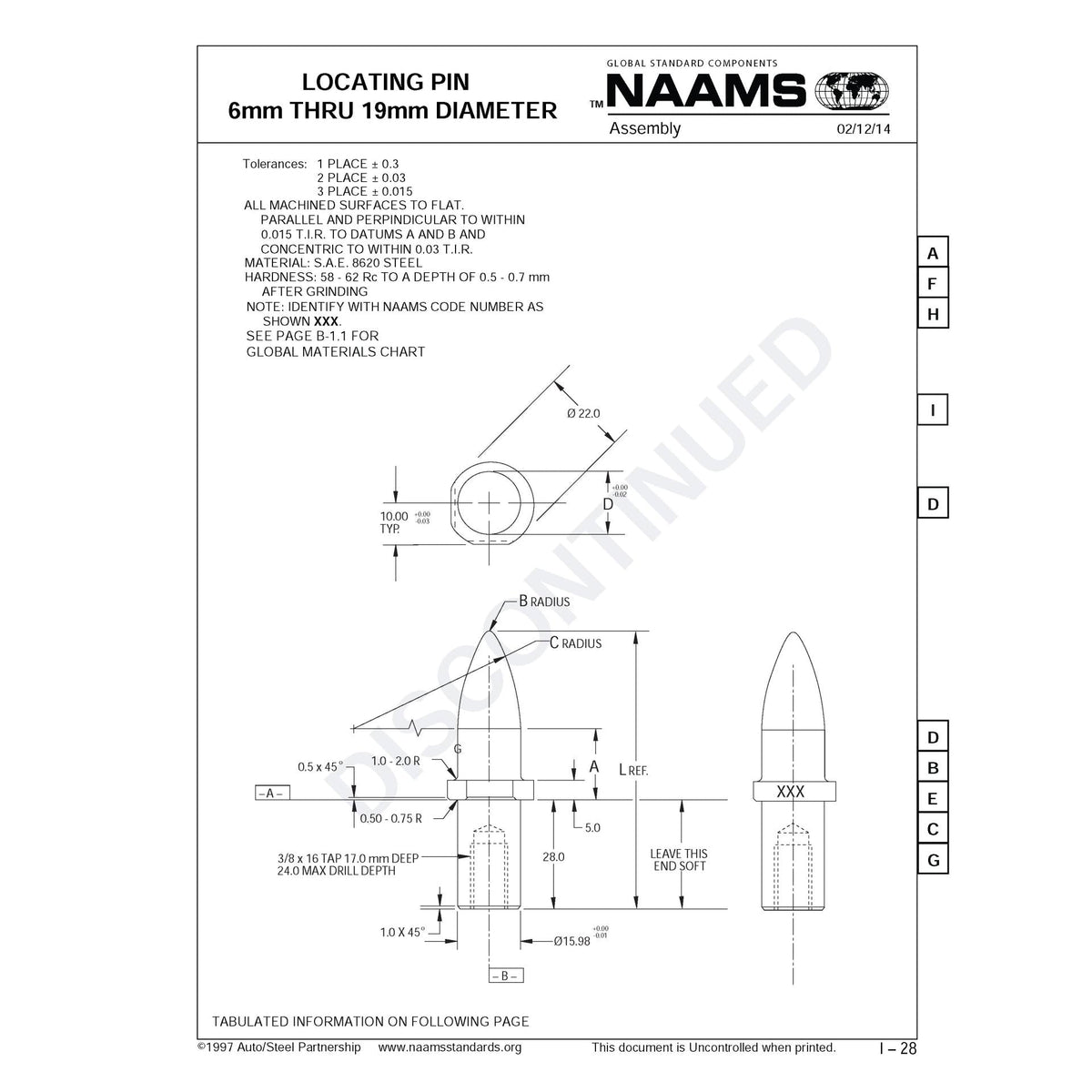

FREER NAAMS LOCATING PIN APS256T ENGLISH
A: 60mm
L: 119.8mm
WT. kg: 0.32
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
