Brand: FREER NAAMS
NAAMS Locating Pin APS252T ENGLISH
SKU: FN-APS252T
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description

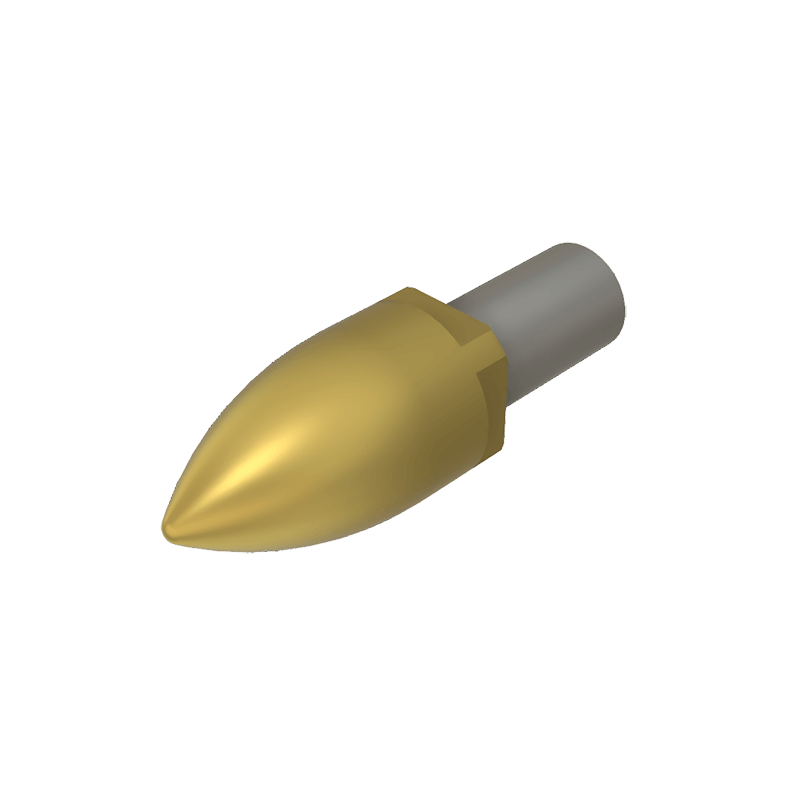

Achieve perfect alignment with the NAAMS APS252T locating pin, a precision component built for tooling and fixture applications that demand reliability. This hardened A2 steel pin measures 79.8mm in length and weighs just 0.17 kg, offering an ideal balance of strength and manageability. Heat-treated to 58-62 HRC, it resists wear and maintains dimensional accuracy through repeated use. Need superior performance? Specify M2 or titanium nitride surface coatings to extend service life in challenging conditions—custom options available upon request.
T = Titanium nitride added.
*M2 coated pins available, per quote only*

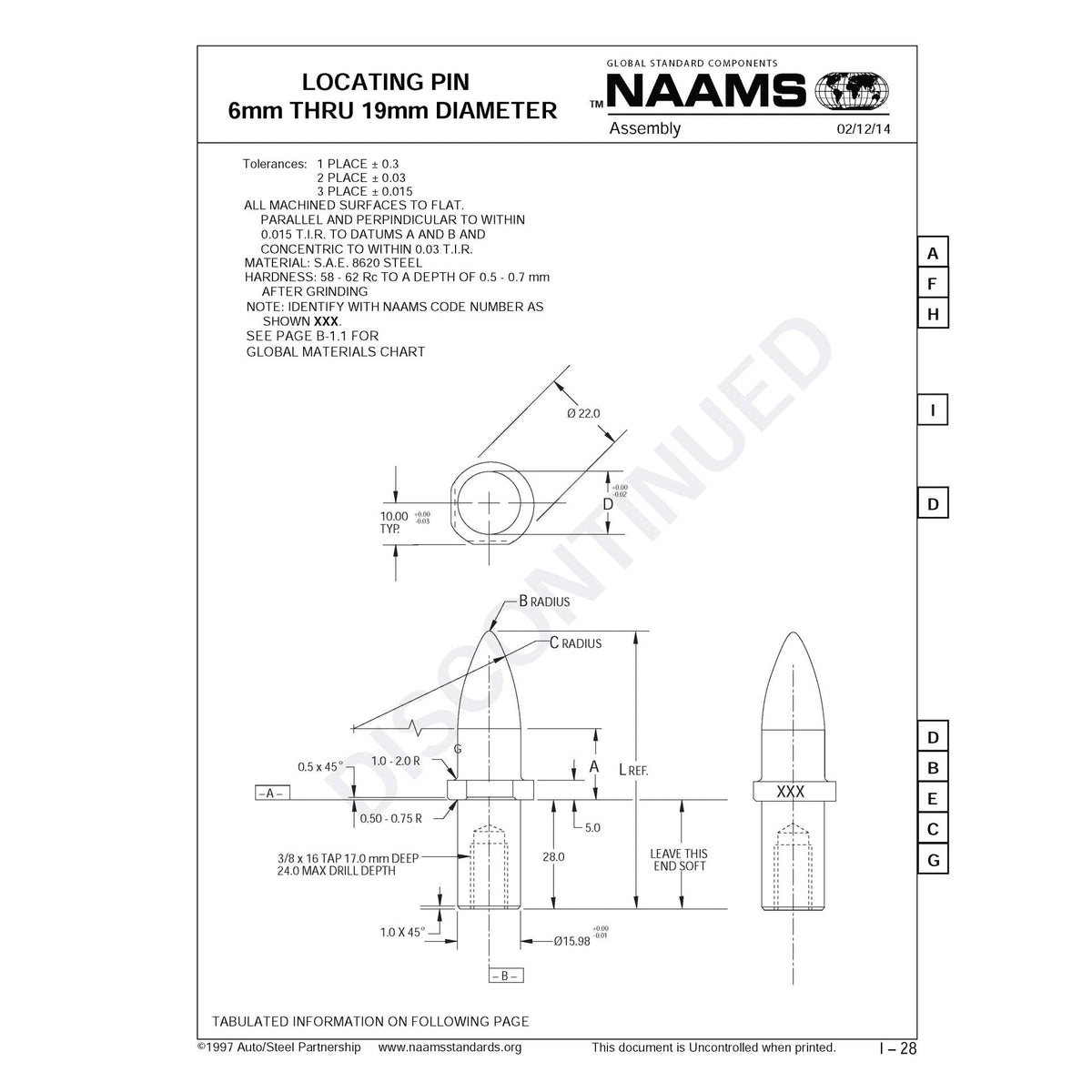

Full Description
FREER NAAMS LOCATING PIN APS252T ENGLISH
A: 20mm
L: 79.8mm
WT. kg: 0.17
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
