Brand: FREER NAAMS
NAAMS Locating Pin APS194T ENGLISH
SKU: FN-APS194T
MPN:

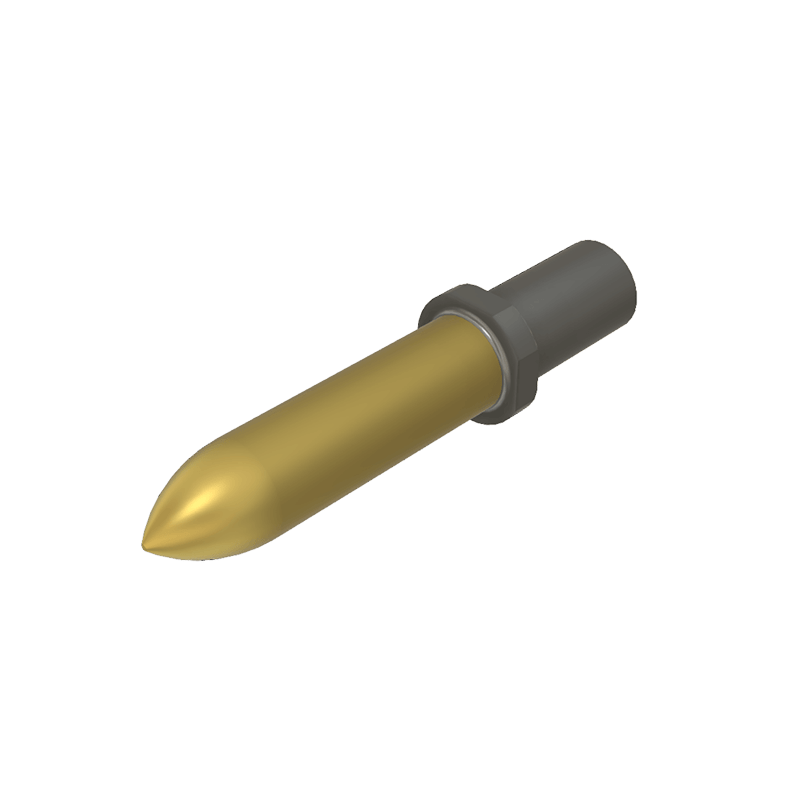

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
Achieve reliable tooling alignment with the NAAMS APS194T locating pin. Built from premium A2 steel and hardened to 58-62HRC, this pin resists wear and maintains precision through demanding production runs. Measuring 91.8mm in length and weighing just 0.16kg, it offers the perfect balance of strength and efficiency. Strategic titanium nitride coating on key surfaces boosts longevity and performance. Need enhanced protection? M2 coated options are available by quote. Trust a locating pin engineered for consistent, accurate results.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

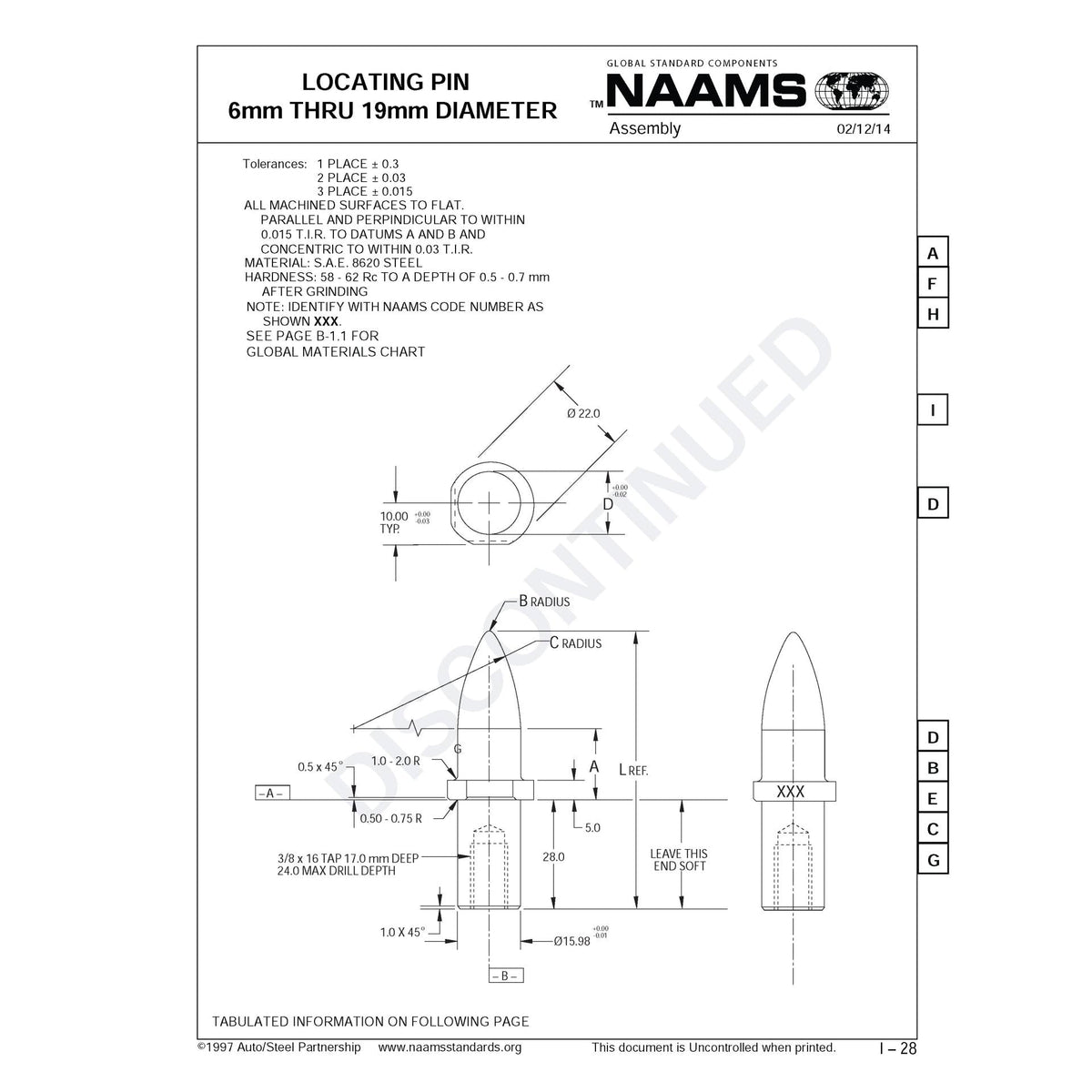

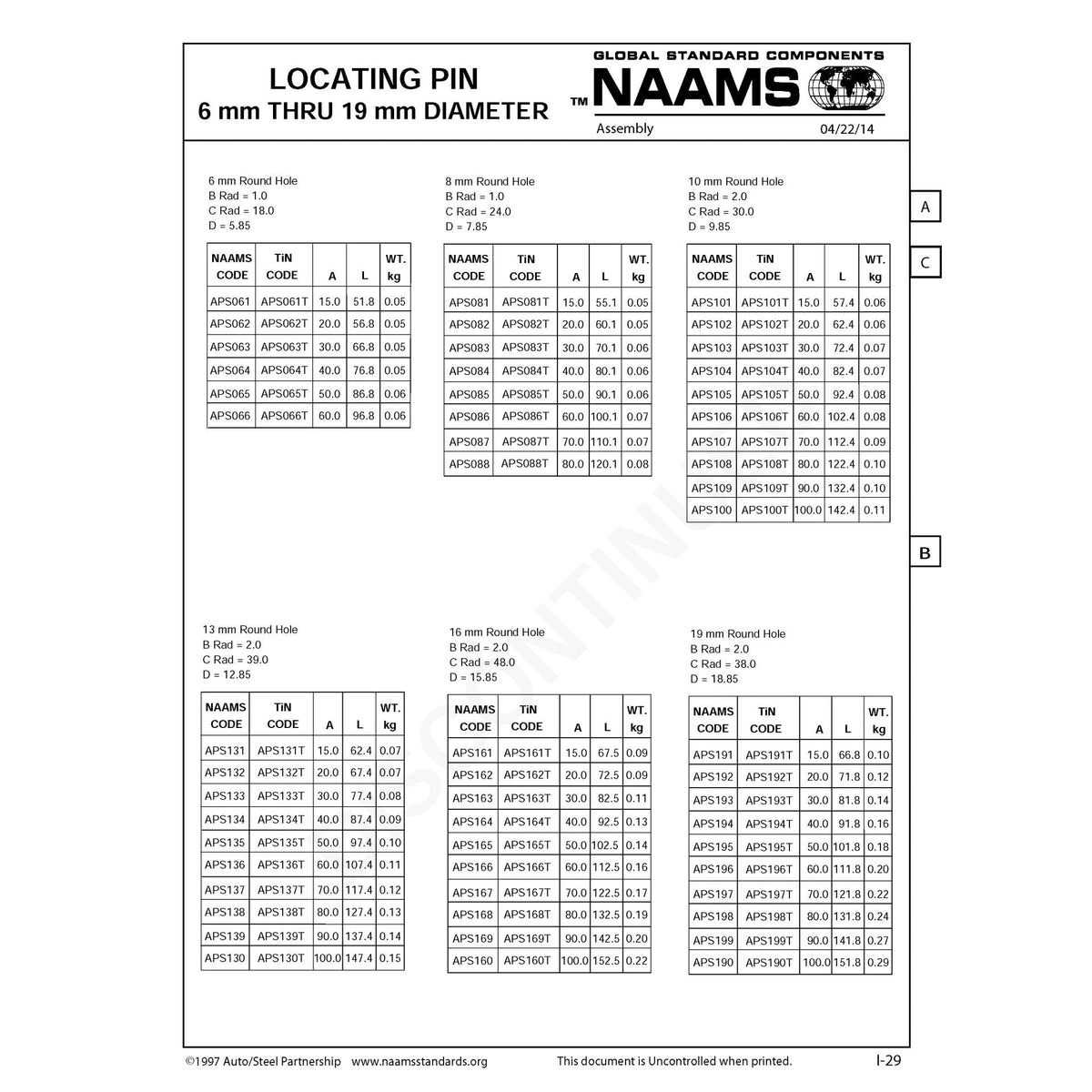

FREER NAAMS LOCATING PIN APS194T ENGLISH
A: 40mm
L: 91.8mm
WT. kg: 0.16
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
