Brand: FREER NAAMS

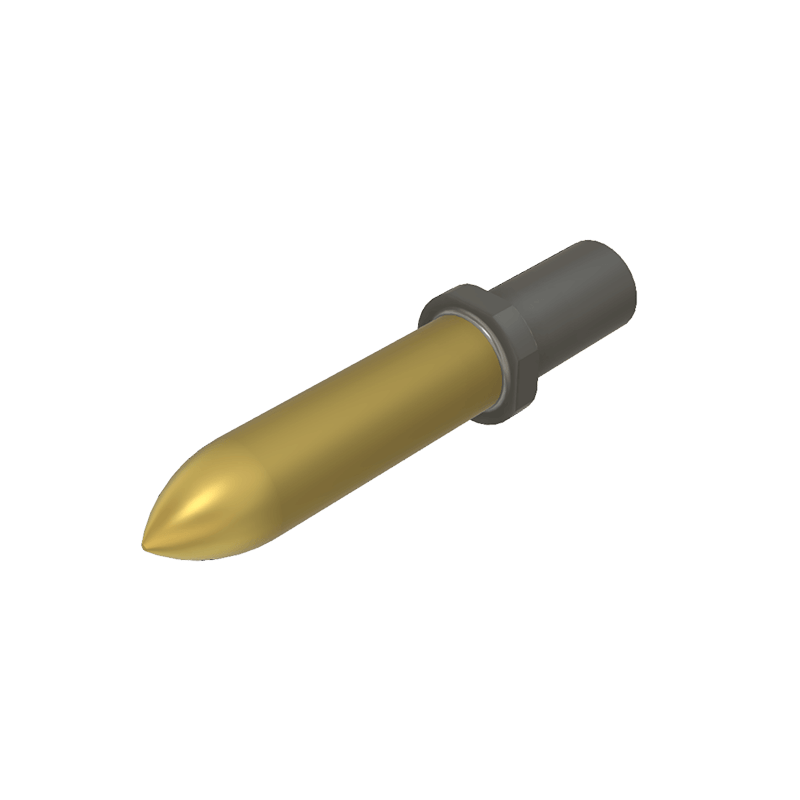

NAAMS Locating Pin APS169T ENGLISH
SKU: FN-APS169T
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
NAAMS locating pins deliver precision alignment for your tooling and fixture applications. This APS169T model features robust A2 steel construction, hardened to 58-62 HRC for exceptional durability and wear resistance. With a 142.5mm length, it provides reliable positioning in demanding manufacturing environments. At just 0.2 kg, it's lightweight yet built to perform. Upgrade to M2 coated or titanium nitride variants for enhanced performance in specialized applications—contact us for custom quotes.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

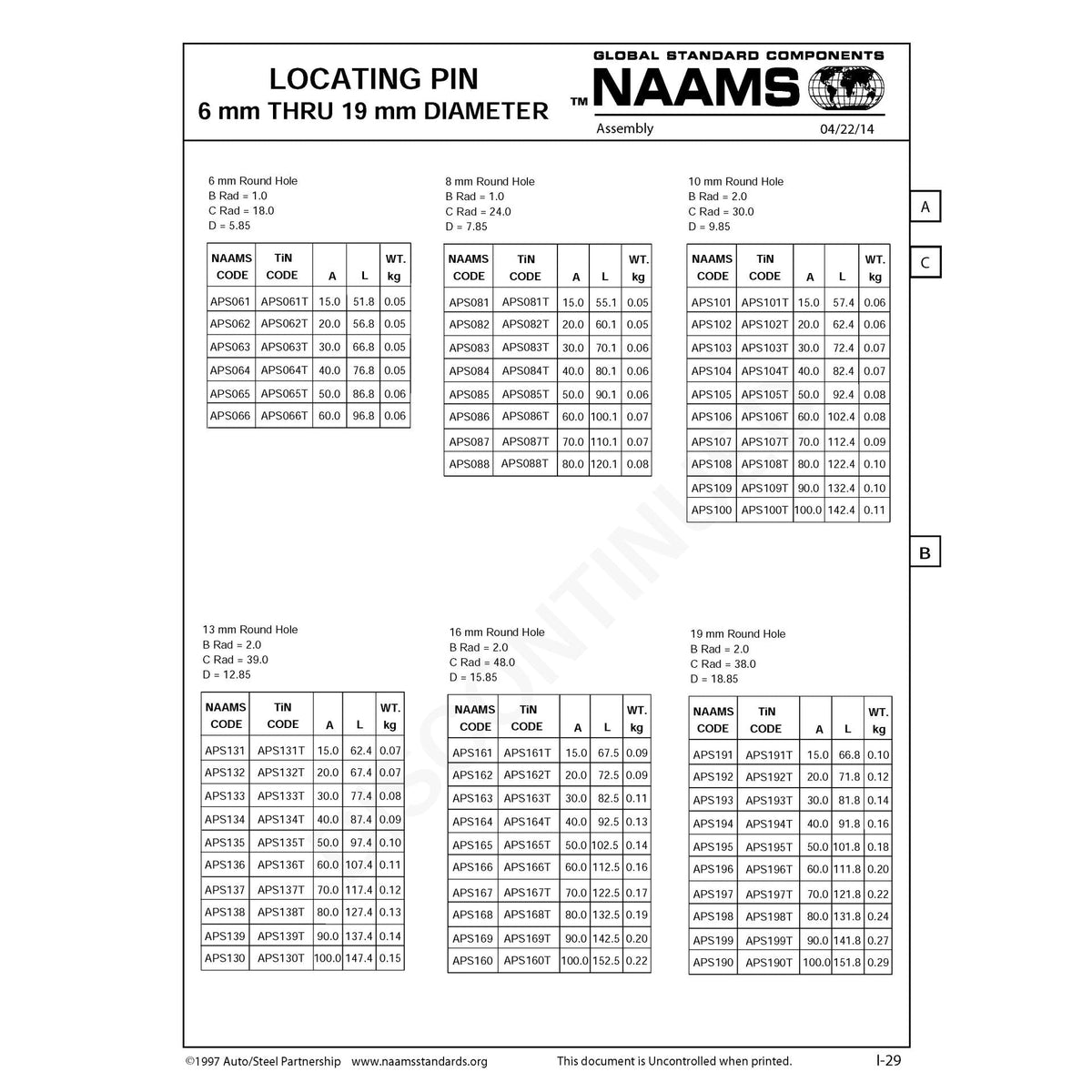

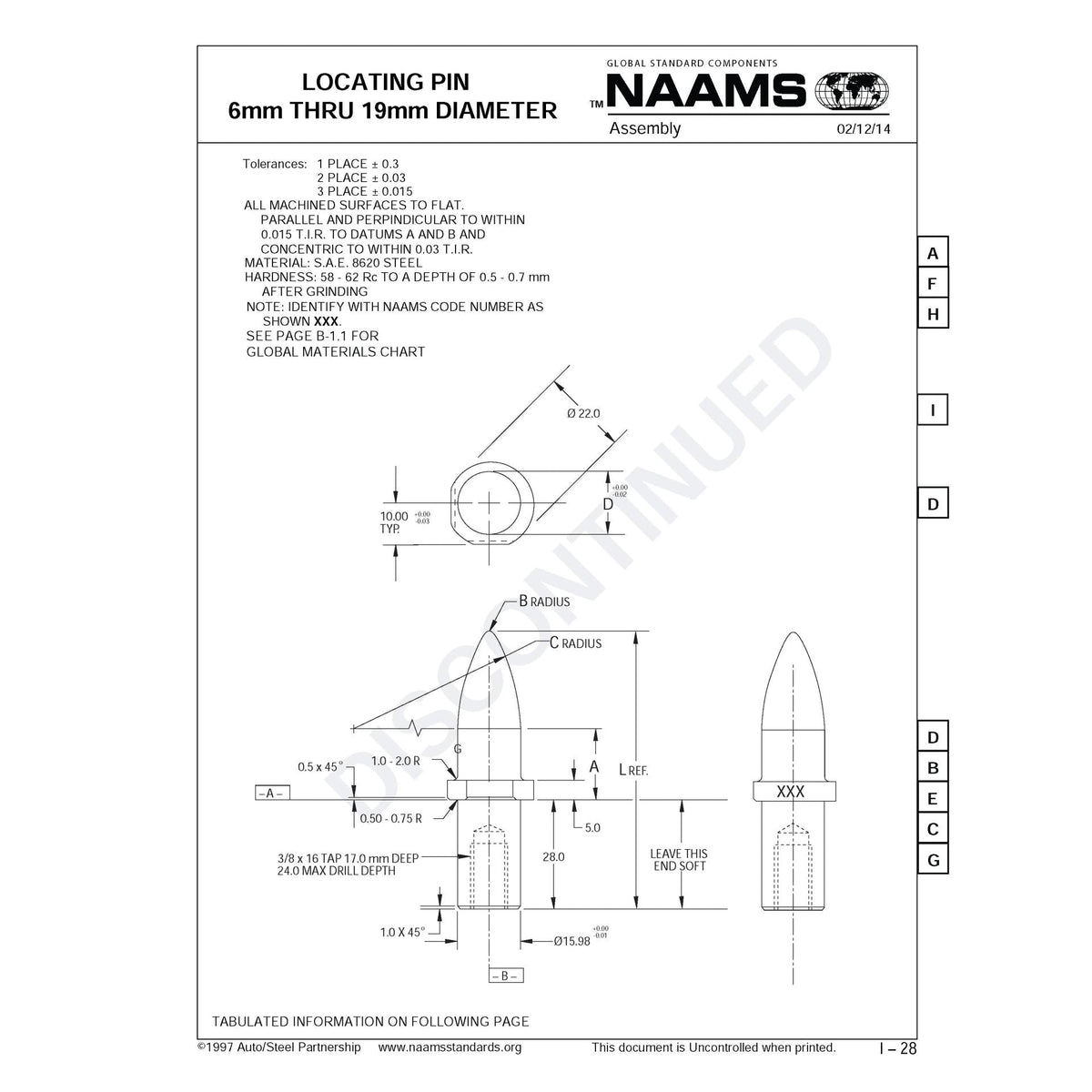

FREER NAAMS LOCATING PIN APS169T ENGLISH
A: 90mm
L: 142.5mm
WT. kg: 0.2
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
