Brand: Fowler

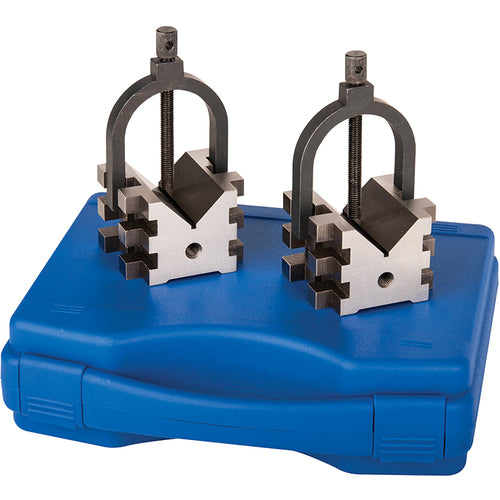

Fowler NA5552475555 Model 52-475-555-0 V-Block Universal Type
SKU: FTS-NA5552475555
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Fowler NA5552475555 Model 52-475-555-0 V-Block Universal TypeFull Description
| Type | Universal V-Block Set | Model No | 52-475-555-0 |
| Overall Length | 2 3/4" | Number of Blocks | 2 |
| Overall Width | 2" | Applications | Two clamps with screw hole at 90 degrees for positive clamping of work. V-Blocks are constructed with stepped grooves which allow the clamps to be inserted without protrusion. All sides of V-Blocks precision ground paralled and square with 0.0004". |
| Overall Height | 2" | Capacity | 2" (50 mm) |
| Angle | 90° | Weight | 5.0 lbs |
| Material | Hardened Steel | Diameter | 2" |
Remarks
• Two clamps with screw hole at 90 included• 2" Clamping capacity• Constructed with stepped grooves allowing the clamps to be inserted without protrusion, thus allowing the V-block to be used on base, ends or sides• Hardened steel• Measures 2 3/4" x 2" x 2"• Matched pair of V-blocks are perfectly aligned with 90 V-grooves ground central and parallel to the sides and base within 0.0004" accuracy.
