Brand: INDUSTRIAL MAGNETICS
Industrial Magnetics MAG-MATE® Rubber Boot, MX3000 Dia Cups MX30BB
SKU: IM-MX30BB
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE Rubber Boot, MX3000 Dia Cups MX30BB. Cup Magnet Assemblies. Plated, low profile, cup magnets are ideal for: holding steel doors, hanging signs and lights, mounting antennas, retrieving steel items from tanks, vats, bins and lakes, holding tarps in place and many other industrial uses.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

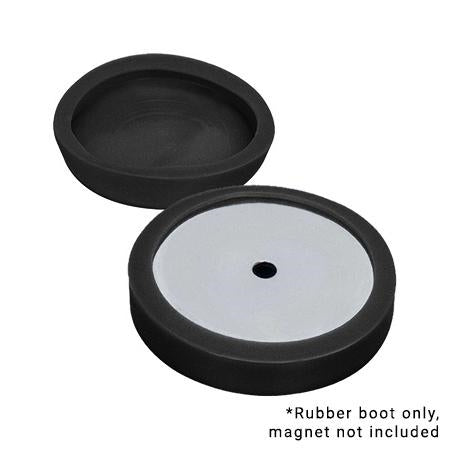

Industrial Magnetics MAG-MATE® Rubber Boot, MX3000 Dia Cups MX30BB
Cup Magnet Assemblies
Plated, low profile, cup magnets are ideal for: holding steel doors, hanging signs and lights, mounting antennas, retrieving steel items from tanks, vats, bins and lakes, holding tarps in place and many other industrial uses.
The Galvanized plating process on these magnets helps prevent them from rusting. If your application involves a damp/wet environment or repeated contact with moisture, we recommend using a galvanized cup magnet.
Rubber Boot Accessories
Ideal for protecting painted, plated, polished, etc. surfaces from scratches. Boots also increase resistance to shear forces. Rubber boots fit over the magnetic face of cup magnets.
NOTE: Using a rubber boot on a cup magnet will reduce the magnets holding power due to air gap. See product chart below.
Literature Download: Cup Magnet Assemblies| Standard Cup Magnet Assemblies | |||||
| Part No. | Maximum Holding Value (lbs) | Diameter (in) | Height (in) | Magnet Inside Diameter (in) | Thru Hole Diameter (in) |
|---|---|---|---|---|---|
| MX0787R | 23 | 0.79 | 0.275 | 0.32 | 0.177 |
| MX0984R | 36 | 0.98 | 0.315 | 0.35 | 0.216 |
| MX1000 | 15 | 1.24 | 0.188 | 0.25 | 0.156 |
| MX1000R * | 38 | 1.24 | 0.188 | 0.25 | 0.125 |
| MX1500 | 25 | 1.41 | 0.281 | 0.375 | 0.188 |
| MX1500R * | 51 | 1.41 | 0.281 | 0.375 | 0.188 |
| MX2000 | 42 | 2.03 | 0.313 | 0.859 | 0.188 |
| MX2002R | 83 | 2.03 | 0.313 | 0.438 | 0.188 |
| MX2004R | 110 | 2.03 | 0.313 | 0.438 | 0.188 |
| MX2500 | 80 | 2.63 | 0.375 | 1.00 | 0.281 |
| MX2508R | 200 | 2.63 | 0.375 | 0.625 | 0.281 |
| MX2750 | 112 | 2.88 | 0.375 | 1.00 | 0.281 |
| MX3000 | 140 | 3.18 | 0.438 | 1.203 | 0.281 |
| MX3870 | 147 | 3.87 | 0.38 | 1.28 | 0.510 |
| MX5000 | 170 | 4.90 | 0.5 | 1.75 | 0.500 |
| MX5000R * | 270 | 4.90 | 0.5 | 1.75 | 0.500 |
| * Magnet face has stainless steel cover to protect magnet & prevent fine metal buildup | |||||
| Cup Magnet with Bolt and Two Nuts | ||||
| Part No. | Maximum Holding Value (lbs) | Diameter (in) | Bolt Thread | Overall Height (in) |
|---|---|---|---|---|
| MX1000B | 15 | 1.24 | 6-32 | 1.188 |
| MX1500B | 25 | 1.41 | 8/32 | 1.375 |
| MX2000B | 42 | 2.03 | 10-24 | 1.063 |
| MX2002RB | 83 | 2.03 | 10-24 | 1.566 |
| MX2004RB | 110 | 2.03 | 10-24 | 1.566 |
| MX2250B | 50 | 2.25 | 5/16-18 | 1.188 |
| MX2500B | 80 | 2.63 | 1/4-20 | 2.12 |
| MX2508RB | 200 | 2.63 | 1/4-20 | 2.12 |
| MX2750B | 112 | 2.88 | 1/4-20 | 2.12 |
| MX3000B | 140 | 3.18 | 1/4-20 | 2.18 |
| MX5000B | 170 | 4.90 | 3/18-16 | 2.12 |
| Cup Magnet with Adhesive Back | ||||
| Part No. | Maximum Holding Value (lbs) | Diameter (in) | Bolt Thread | Height (in) |
|---|---|---|---|---|
| MX1000ADH | 7 | 1.24 | 6-32 | 0.188 |
| MX1500ADH | 11 | 1.41 | 8/32 | 0.281 |
| MX2000ADH | 19 | 2.03 | 10-24 | 0.313 |
| Cup Magnet with "D" Style Loop | |||||||
| Part No. | Maximum Holding Value (lbs) | Diameter (in.) | Opening Min. - Max. (in) | Overall Height (in.) | |||
|---|---|---|---|---|---|---|---|
| MX1000DL | 7 | 1.24 | 0.43 x 0.75 | 0.375 | |||
| MX1500DL | 11 | 1.41 | 0.43 x 0.75 | 0.50 | |||
| MX2000DL | 19 | 2.03 | 0.43 x 0.75 | 0.5625 | |||
| Rubber Boots for Cup Magnets | ||||
| Part No. | Color | Air Gap (in) | Weight (lbs) | Supported Magnets and Their Reduced Holding Value (lbs) |
|---|---|---|---|---|
| MX10BB | Blue | 0.032 | 0.001 | MX1000: 2.3, MX1000R: 11 |
| MX15BB | Black | 0.045 | 0.001 | MX1500: 3.4, MX1500R: 13.3 |
| MX20BB | Blue | 0.022 | 0.001 | MX2000: 9.5, MX2002R: 31.4, MX2004R: 47.2 |
| MX25BB | Black | 0.042 | 0.020 | MX2500: 18.3, MX2508R: 70.0 |
| MX30BB | Black | 0.035 | 0.030 | MX3000: 37.9 |
| MX50BB | Blue | 0.045 | 0.050 | MX5000: 70, MX5000R: 117.5 |
