Brand: INDUSTRIAL MAGNETICS

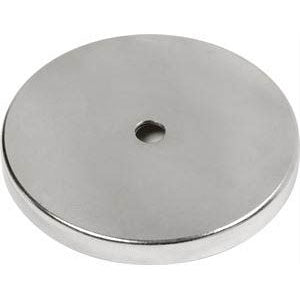

Industrial Magnetics MAG-MATE® Ceramic Magnet in a Plated Cup 2.63" Dia, 41 Lb Capacity MX2500
SKU: IM-MX2500
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE® Ceramic Magnet in a Plated Cup 2.63" Dia, 41 Lb Capacity MX2500. Plated cup magnets are ideal for holding steel doors, hanging signs and lights, mounting antennas, retrieving steel items from tanks, vats, bins, and lakes, holding tarps in place, and many other industrial uses.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Ceramic Magnet in a Plated Cup 2.63" Dia, 41 Lb Capacity MX2500
PLATED CUP MAGNET ASSEMBLIES
Plated, low profile, cup magnets are ideal for: holding steel doors, hanging signs and lights, mounting antennas, retrieving steel items from tanks, vats, bins and lakes, holding tarps in place and many other industrial uses.
The Galvanized plating process on these magnets helps prevent them from rusting. If your application involves a damp/wet environment or repeated contact with moisture, we recommend using a galvanized cup magnet.
Rubber Boot Accessories
Ideal for protecting painted, plated, polished, etc. surfaces from scratches. Boots also increase resistance to shear forces. Rubber boots fit over the magnetic face of cup magnets.
NOTE: Using a rubber boot on a cup magnet will reduce the magnets holding power due to air gap. See product chart below.
‚¬¢ Permanent Ceramic Magnet
‚¬¢ Brightly plated steel cup
‚¬¢ Through-hole for mounting
‚¬¢ Low profile design
‚¬¢ Maximum hold 82 lbs
‚¬¢ Magnet diameter 2.63"
‚¬¢ Through-hole diameter 0.281"
‚¬¢ Height 0.375"
‚¬¢ Weight 0.30 lbs
‚¬¢ Mfg Category: Tooling Metalworking
Model No. | Max - lbs (kg) | Description | Magnet | O.D. (in) | Through Hole (in) | Rec. Mounting Screw | Magnet I.D. (in) | OAH (in) | Wt. (lbs) |
MX2500 | 80.0 (36.29) | Low Profile Cup | Ceramic | 2.63 | 0.281 | 1/4-20 | 1 | 0.375 | 0.3 |
