Brand: Dorian

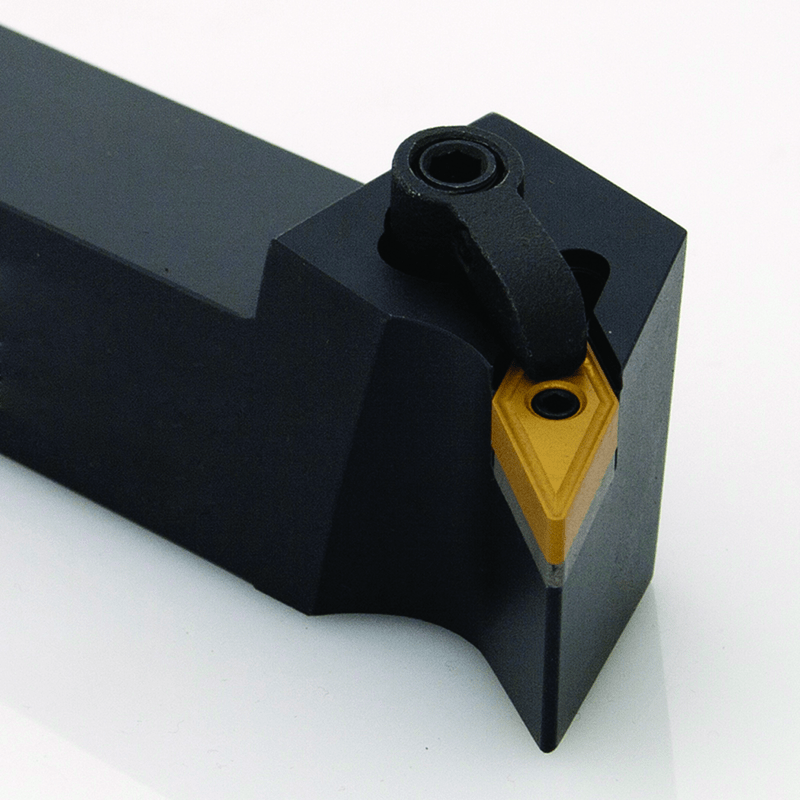

Dorian FL4551147 MVTNL20-3D-1-1/4 x 1-1/4" SH - LH - Turning Toolholder
SKU: FTS-FL4551147
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 51147 MVTNL20-3D-1-1/4 x 1-1/4" SH - LH - Turning ToolholderFull Description
| Shank Height (H) | 1 1/4" | Master Insert Identification (MIID) | VNM_33_ |
| Shank Width (B) | 1 1/4" | End Chamfer Angle (ECA) | 27.5 Degrees |
| Overall Length (OAL) | 6" | Clamping System | CL30 |
| Head Length (LH) | 1.625 | Tool Type | Turning Toolholders-Standard |
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Style | MVTNL20-3D |
| Inscribed Circle Diameter (IC) | 3/8" | Insert Style | 6.00 |
| Cutting Direction (HAND) | Left Hand |
• Style N • Negative 27.5° End Cutting Edge Angle for Negative 35° Diamond VNM_ Inserts
