Brand: Mitutoyo

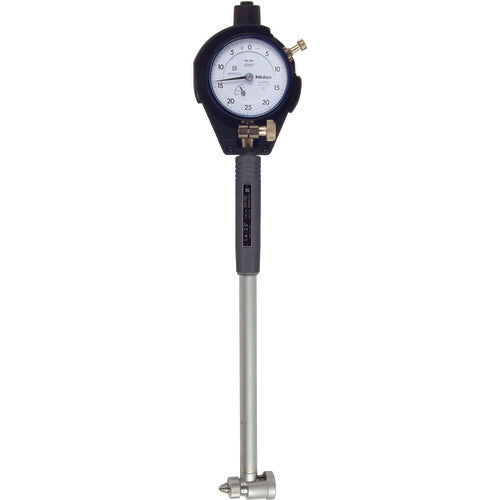

Mitutoyo MT80511-742 Model 511-742-1.400"-2.500" Range-0.0005" Graduation - Bore Gage

SKU: FTS-MT80511-742
MPN: 511-742

$378.18
Unit price per
Save $54.42

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Mitutoyo MT80511-742 Model 511-742-1.400"-2.500" Range-0.0005" Graduation - Bore Gage

Full Description

Type	Bore Gage	Model No	511-742
Minimum Measurement	1.400"	Included	AGD Series 2 Dial Indicator and fitted carrying case
Maximum Measurement	2.500"	Number of Spacers	4
Graduation	0.0005"	Number of Anvils/Rods	6
Depth	6.0"	Probe Type	Standard Type

• All Mitutoyo Dial Bore Gages are supplied with AGD Series 2 Dial Indicator and fitted carrying case• A reference chart is furnished which indicates the spacer and rod sizes to be selected for the specific range.• 10" extension rod to increase measuring depth from the edge is available for 511–185, 186, 188 and 189 (Part No. 101421)• To increase the length of interchangeable measuring rods, a 2" extension collar is available for use with 511–162 and 511–166 (Part No. 101421)
